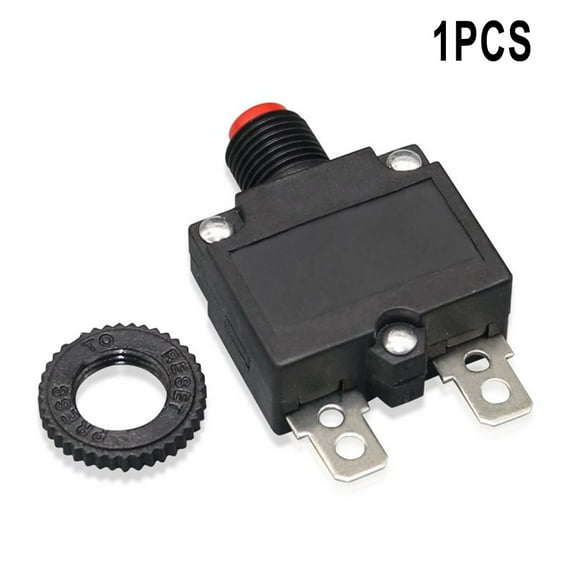

Thermal Switch Overcurrent Overload Protector Button 5A/10A/15A/20A Plastic Case Overload Protector 10mm Thread Overload Protect

Features:

- Brand new and high quality
- Made of high quality materials,
- Excessive current can cause increased heating of the bimetal, which can cause the contacts to open, shutting down the device
- Usage Electric motors, water pumps, electric drills, cutting machines, power tools, mechanical hardware, etc.
- Disconnection time :
- 100 rated current: no disconnect
- 150% rated current: disconnected in about 1 hour
- 200% rated current: 5-25 seconds disconnect
- 300% rated current: 1.5-5 seconds disconnect

Specification:

- Body size: 35mmx14.5mmx42.5mm
- Hole size 10.5mm
- Thread: 10mm.
- Name overload protector
- Rated voltage AC 125/250V DC 32V
- Rated current 5A10A15A 20A (optional)
- Reset Manual reset
- Material: plastic case/bakelite case/copper contacts/compound silver

Package Included:

1 * Overload protector (optional)

Notes:

1. Due to various factors such as display brightness and light brightness, the actual color of the product may be slightly different from the website picture.
2. Please allow a slight deviation between the data and the manual measurement.
