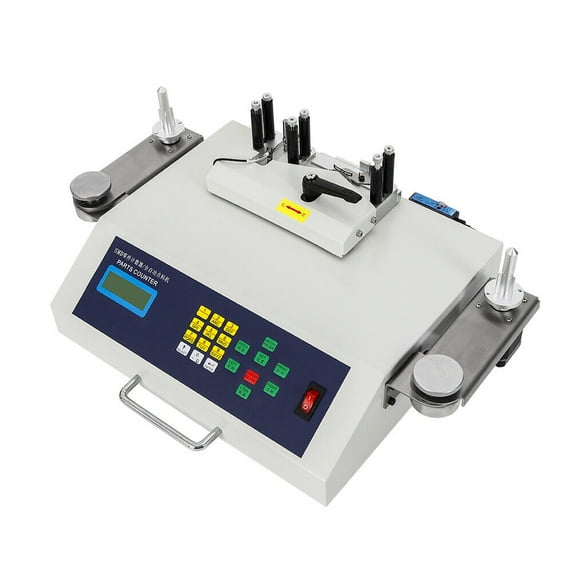

Automatic SMT/SMD Components Counter, Components Counting Machine with 3 Digit LCD Display, Component Counter for Electronics Factory, Component Factory, Parts Factory 25W

Description:
The SMD counter adopts the principle of photoelectric sensing,and uses the corresponding relation between the guide hole and the part,through the special-purpose processing chip and the large-scale centralized circuit processing,realizes the zero error,accurately measures the number of SMD parts,can realize the convenient and quick count,is the high efficiency auxiliary equipment of SMT material management.



Application:
The SMD material belt type components are all suitable
Diameter of belt wheel:Any size is all suitable
PITCH: 1,2,4,8,10,12,16,24,32,44,56 mm
WIDTH: 4,6,8,12,16,24,32,44,56mm (note: smaller or wider distance can be developed or customized according to demand)

Features:
Completely automatic way computation components quantity,facilitates a material,sends the material work simplicity of operator.
Has a special inventive mind against material belt will fall off the design to reduce to the material belt’s injury to the smallest
Forward and reverse all may count,but preinstall quantity,will calculate quantity precisely,zero error.
May install the scanning gun and the bar code printer,facilitates the management work.

Note:
After unpacking, please check if all the attachments are complete.
Please read the operation manual carefully before using and keep it properly.
Check whether the voltage specification is consistent with that of municipal power.
Please make sure to connect the ground wire to ensure the safety of the person and parts.

Operation methods:
1) connect the power cord to the host and connect the AC220V power supply
2) turn on the POWER switch of the machine panel, and the LCD panel will shine
3) press PITCH to set the spacing of parts to be counted and press "ENTER". Place the parts to count on the left side tray.
4) manually pull out the material belt and clamp it between the material plate and counting gear, and align the intermediate hole of the first part and blank space to the middle line of the material plate.
5) press the "stop/reset" button for 2 seconds to return the number to zero. Note: when pulling the material belt, the counting gear will rotate and count.
6) press the "setting" button to switch to manual and automatic mode. If you choose automatic mode, you must input the quantity you want to count. Otherwise, press "forward" and the motor will not rotate.
7) pull the material belt by hand and wind it to the empty material plate. Press "forward /RIGHT" to count.
8) the motor will stop when the quantity arrives. Due to the inertia principle, the number of counts may be more or less than the set value of about 1, which can be manually rotated to the LCD display set value in the direction of the material disk, that is, the number of parts.
9) after counting, press "reverse /LEFT" tape and then roll it back to the original LEFT panel, and then stop rotating.

Packages:

1 x SMT/SMD Components Counter
