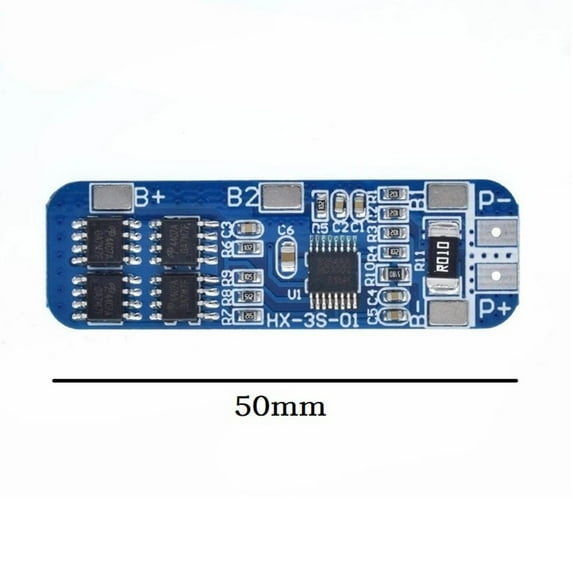

Reliable 12V Charger Liion Lithium Battery Protection Board Set Of 2 Fangkenuo

Feature:

Short circuit protection.

Overcharge protection.

Over-discharge protection.

Overcurrent protection.

Can be applied to various 3.7V lithium core.

Compact size and lightweight.

Fine workmanship and .

for Ensure the security of battery pack.

Suitable for:

10.8V (Rated voltage of polymer battery)

11.1V (3.7V lithium battery rated voltage)

12.6V (Lithium battery full charge voltage)

Specification:

Size: approx.50x16x1mm

Maximum discharge current: 10A

Overcharge detection voltage: 4.25-4.35V±0.05V

Over-discharge detection voltage: 2.3-3.0V±0.05V

Maximum working current: 5A-8A

Transient current: 9A-10A

Operating temperature: -40~50℃

Storage temperature: -40~80℃

Quiescent current: ＜6uA

Internal resistance: ＜60mΩ

Service life: ＞30,000 hours

Package Included:

1 x Protection Board

Note:

1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.

2. Please allow slight manual measurement deviation for the data.
