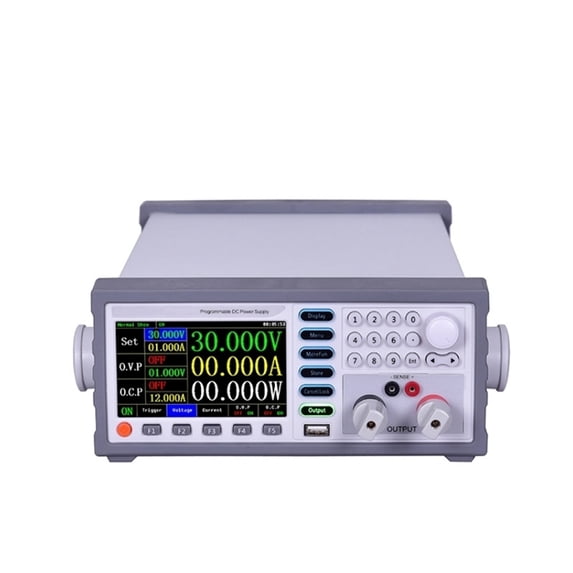

Laboratory Switching Programmable Adjustable Variable 15V 30V 60V 80V 10A 11A 15A 20A 30A 60A DC Power Supply ,Safe Reliable to Use

Rated DC output (0 ~~40 )

Power:It can be adjusted according to the voltage and current you select

Voltage: Adjustable According To The Voltage You Select

Current: Adjustable According To The Current You Select

Power effect: 0.01%+4mV

Load effect: 0.01%+5mV

recovery time: 1.5ms(50%load change)

Ripple and noise: 2mVrms,30mVpp

temperature coefficient: 300ppm/

Set precision: ±(0.03% of reading+10mV)(25±5)

Set resolution: 1mV

Current output

Power effect: 0.2%+3mA

Load effect: 0.2%+5mA

Ripple and noise: 10mArms

Set precision: ±(0.03% of reading+10mA)(25±5)

Set resolution: 1mA

Display

Voltage: 5 digits display

Electric current: 5 digits display

Voltage resolution: 1mV

Current resolution: 1mA

Display Size: 4.3 inch TFT

Display resolution: 480*272

Reading accuracy: ±(0.02% of reading+5mV)(25±5);±(0.3% of reading+10mA)(25±5)

Protect: Overload protection, polarity reversal protection, overvoltage protection, overcurrent protection, over temperature protection

Lock keyboard: have

Programming interface: RS232, USB, 485 (optional), U disk storage, internal hard disk. Support SCPI and Modbus

Storage call out: 100 groups

Insulation: Between the output terminal and the casing or other terminals; 60VDC

Operating environment:

Indoor altitude: 2000m

Ambient temperature: 0 ~40

Relative temperature: 80%

Installation level: II

Pollution degree: 2"

Storage environment:

Ambient temperature: - 10 - 70

Relative temperature: 70%

Enclosure: One power cable, one RS232 interface cable and one USB communication cable

Size (without protective sleeve): 400(D)×215(W)×88(H)mm

Weight: About 5.5kg, different models
