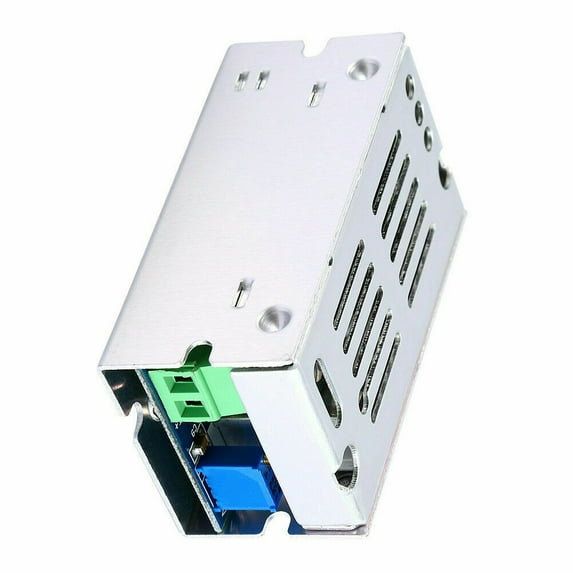

Buck Converter Step-Down Power Module 200W 15A DC-DC 8-60V TO 1-36V

Description: 200W DC-DC high voltage power synchronous buck module 8-60V wide voltage input, 1-36V stepless adjustable output The maximum peak output current 15A Perfect ultra-efficient circuit design up to 94% Low Ripple Parameter: Name: 200W adjustable synchronous buck module Type: Non-isolated step-down module (BUCK) Aluminum housing Size: 70 x 38 x 31 mm / 2.75" x 1.5" x 1.2" Input voltage: 8-55V (limit 60V, please leave allowance) Output voltage: 1-36V continuously adjustable (the default output 12V) Output Current: Normal 10A, MAX15A Output power: natural cooling ventilated long-term power 100W To enhance heat dissipation up to 200W Such as long working hours, please note left margin and make the heat rise Operating temperature: -10 to +85 degrees Operating frequency: 180KHz Conversion efficiency: up to 94% Overcurrent protection: Yes (the output current exceeds (15A) current maximum sample protection only) Reverse polarity protection: (reverse does not burn) Wiring: high current terminals, solderless, IN + input is positive, IN- is the input negative, OUT + positive output, OUT- output negative.
