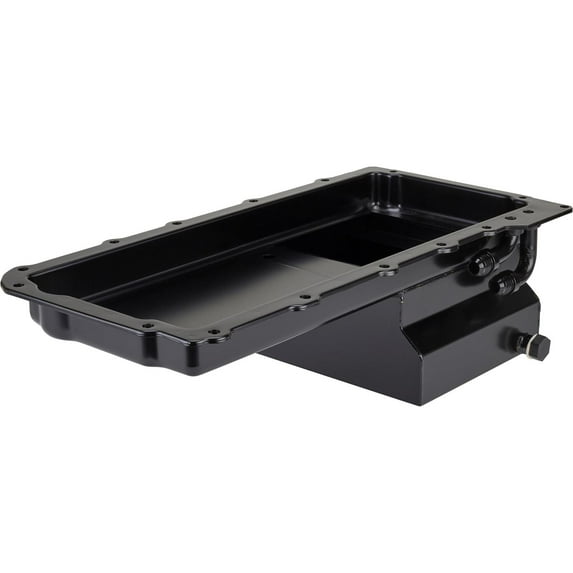

LS Swap Conversion Low Profile Oil Pan, Black, 90 Degree 10 AN

Fits a wide variety of 1960s-1980s RWD GM vehicles with rear sump oil pans. Designed for Gen III and Gen IV LS wet sump applications. Sump is 6 inches deep for increased ground clearance. Pan depth at front half of pan is 1 5/8-inch for increased K-member/steering clearance. 21-inch length overall with the sump 10-inches long. 10 1/4-inches wide at sump kickouts. Swap pan holds 7 quarts of oil for extended high rpm use. Truck windage trays can be used with mild modification. Fits stroker kits up to 4.125-inch stroke with OE connecting rod design. Perfect swap pan for 4.8L, 5.3L, or 6.0L Vortec LS truck engines being installed into cars to increase ground clearance. Anti-slosh baffle with trap door for increased oil control during acceleration and braking. Pickup tube 9101745 is required for use with this oil pan. AN 10 90-degree fittings require a remote mounted oil filter. We suggest oil pan bolt kit 91001008 and pan gasket 91017451 to complete installation. Make Your LS Swap Happen Without the Hassle There is no denying the appeal of the LS swap. GM's LS family of engines is compact, lightweight, and makes great power. They are plentiful and cheap, and can be found in every RWD application GM has offered since the late '90s, including performance cars like the Camaro, Corvette, GTO, and G8, and vans, SUVs, and trucks like the Trailblazer, SSR, and Silverado. Furthermore, the aftermarket has embraced the engine family, making an LS swap literally a weekend affair with such LS swap kit bits as engine mounts, headers, cooling system pieces, and more. Perhaps the most popular LS engine is the 5.3L truck offering, as they are the epitome of cheap and plentiful. Most are iron block, though there are aluminum block variants found in certain applications. When swapping most any LS engine you will more than likely need to update the oil pan for proper fitment into the chassis you are swapping into, but especially so with LS truck engines and their deeper oil pans. Our steel LS swap oil pan is the perfect solution to your LS swap fitment needs, whether you need an LS3 low-profile oil pan, LS7 oil pan, or any other Gen III or Gen IV LS V8 engine. Built from The Best Materials to Last The factory LS oil pan is cast aluminum, and while generally a strong alloy to create automotive components from, you will find excessive casting ribs and bosses to aid in that strength that can be troublesome for fitment in a swap situation. Not to mention if the pan hangs down too far and hits something the usual result is a shattered pan and loss of the sump's contents and a ride home on the roll back. We make our LS swap oil pans from steel. The steel is just as strong as aluminum without all of the fitment issues, and creates a lower profile while providing for increased sump capacity. If you do happen to strike something with the pan it will most likely leave a dent instead of shattering, allowing you get home under your own power without loss of oil. You will find an anti-slosh baffle and trap door inside our LS swap oil pan. So, know a baffled oil pan is preferred over an open design. Our swap pans feature factory-fit pan rails with reinforcement strips that use the stock LS oil pan gasket, a full-flow oil drain with ½-20 threaded drain plug that uses a replaceable nylon sealing washer, and our pans even retain the stock dipstick setup. With just a 6-inch sump depth our LS swap pans are roughly 2-inches shallower than the GM truck pan, and with the pan kickout design we use you get a full 7-quart oil capacity for your LS conversion! Lastly, we coat our LS swap oil pan in a rich black EDP coating for corrosion protection and lasting good looks. A Direct Replacement Pan for Your LS Swap Upgrading your LS V8 engine to make your LS conversion happen could not be easier. Our steel LS swap oil pan is a direct replacement for the cast aluminum factory pan found on Gen III and Gen IV LS engines
