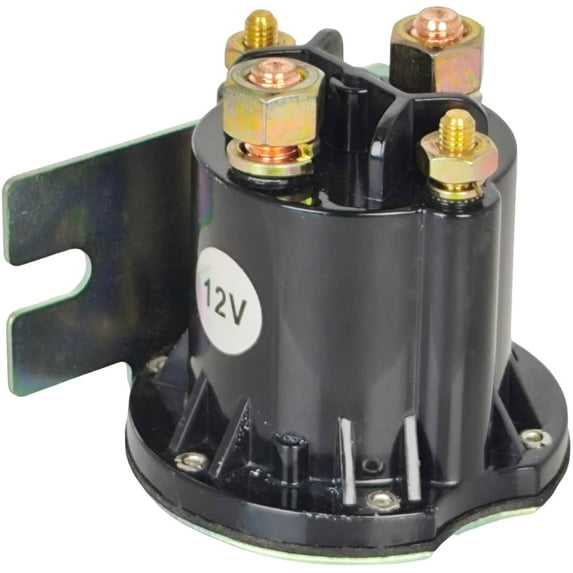

Hero image 0 of XYZIL 684-1251-012 JW1-H1950-00-00 12V Solenoid Relay Compatible with Yamaha 2003-Current G22-G29 Gas Golf Cart 684-1271-012 4 Terminal Compatible with Trombetta Power Seal Continuous DC Contactor, 0 of 6
XYZIL 684-1251-012 JW1-H1950-00-00 12V Solenoid Relay Compatible with Yamaha 2003-Current G22-G29 Gas Golf Cart 684-1271-012 4 Terminal Compatible with Trombetta Power Seal Continuous DC Contactor
(No ratings yet)
Key item features
- Part Number: JW1-H1950-00-00, JW1-H1950-00, 684-1271-012, 684-1251-012
- Replace Part Number: JR3-H1950-00-00, JF2-H1950-00, J38-81950-01, 240-22272
- Specification:Voltage: 12VCarry Current 150 Amps, Inrush 800 AmpsTerminals: 4Duty: 100% Continuous(2) 5/16-24 & (2) Non-Grounded 10-32 StudsMounting Type: Flat, L BracketContact: CopperSealed Design
- Mounting Instructions:1. Select a desired mounting location2. Using the contactor as a template, mark the centers of the mounting holes.3. Using a ¼” drill bit, drill the holes marked in the previous step.4. Mount the contact using ¼’ bolts and nuts.5. Wire the relay according to the wiring diagram.
- If your application requires a sealed or submersible design, you must have this one.Sealed design protects against dust and water jets. IP67 environmental rating allows it to be submerged into 1 meter of water for a period of 30 minutes. It is not intended to operate under water. If this unit is exposed to water and completely dried off afterwards, it should be capable of being energized again.
Specs
- Vehicle modelG22, G29
- Vehicle year2003
- Vehicle makeYamaha
- Vehicle fitment typeSpecific
- BrandXYZIL
- Automotive specialty part typeSolenoid Relay
Current price is USD$17.85
Price when purchased online
- Free shipping
Free 30-day returns
How do you want your item?
Columbus, 43215
Arrives by Wed, Apr 15
|Only 1 left
Sold and shipped by ReadyPart4U
4.6 stars out of 5, based on 10 seller reviews(4.6)10 seller reviews
Free 30-day returns
About this item
Product details
12V Solenoid Relay
- Part Number: JW1-H1950-00-00, JW1-H1950-00, 684-1271-012, 684-1251-012
- Replace Part Number: JR3-H1950-00-00, JF2-H1950-00, J38-81950-01, 240-22272
- Specification:Voltage: 12VCarry Current 150 Amps, Inrush 800 AmpsTerminals: 4Duty: 100% Continuous(2) 5/16-24 & (2) Non-Grounded 10-32 StudsMounting Type: Flat, L BracketContact: CopperSealed Design
- Mounting Instructions:1. Select a desired mounting location2. Using the contactor as a template, mark the centers of the mounting holes.3. Using a ¼” drill bit, drill the holes marked in the previous step.4. Mount the contact using ¼’ bolts and nuts.5. Wire the relay according to the wiring diagram.
- If your application requires a sealed or submersible design, you must have this one.Sealed design protects against dust and water jets. IP67 environmental rating allows it to be submerged into 1 meter of water for a period of 30 minutes. It is not intended to operate under water. If this unit is exposed to water and completely dried off afterwards, it should be capable of being energized again.
info:
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here, and we have not verified it.
Specifications
Vehicle model
G22, G29
Vehicle year
2003
Vehicle make
Yamaha
Vehicle fitment type
Specific
Warranty
Warranty information
Please be aware that the warranty terms on items offered for sale by third party Marketplace sellers may differ from those displayed in this section (if any). To confirm warranty terms on an item offered for sale by a third party Marketplace seller, please use the 'Contact seller' feature on the third party Marketplace seller's information page and request the item's warranty terms prior to purchase.
