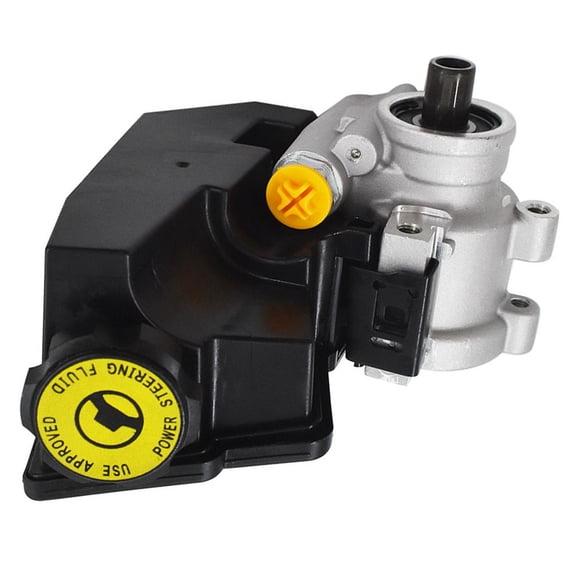

SEBLAFF Power Steering Pump For 1996-2003 Jeep Cherokee Wrangler TJ 4.0L l6 GAS OHV

Replacement for:

for 1996-2001 Jeep Cherokee 4.0L 242Cu. In. l6 GAS OHV

for 1997-2003 Jeep TJ 4.0L 242Cu. In. l6 GAS OHV

for 1997-2003 Jeep Wrangler 4.0L 242Cu. In. l6 GAS OHV

for 2003 Jeep Wrangler 4.0L 3956CC 241Cu. In. l6 GAS OHV

for 2001 Jeep Wrangler 4.0L 3958CC 242Cu. In. l6 GAS OHV

Other Part Number:

55-7140

36P1488

36-717140

55-7141

50-7140

52087871

Installation Steps:

Remove the screws near the pump. After removing, you need to remove the exhaust heat shield first, and then remove the pulley.

To disassemble the pump, so try to drain the oil, Remove the oil pipe after draining. After removing other parts, remove the old pump.

Screw the oil inlet hose, high-pressure oil outlet hose, upper fixing screw, and upper belt on the new pump.

Lift the protective cover of the belt pulley to align the belt to the belt groove of each wheel.

Adjust the screw of the tension wheel to make the belt expand Tight.

Pouring power oil into the oil pot, and finally powering the pipeline to exhaust.
