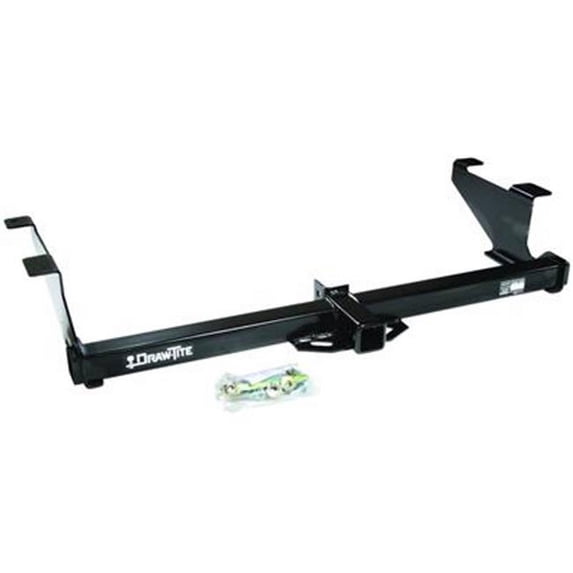

DRAW TITE 75108 Max-Frame Class Iii - Iv 2 In. Square Receiver Hitch

Class IV Hitches is very similar to Class III Hitches except for the weight ratings. Class IV hitches are Weight Carrying(WC) and Weight Distributing(WD) hitches depending on the vehicle and hitch specifications. Not all Class IV hitches are rated to be both. The hitch specifications will alert you to a hitch that is not weight distributing. Class IV hitches used as weight carrying is rated up to 12000 Pounds. Gross Trailer Weight(GTW) with a maximum Trailer Tongue Weight(TW) of 1200 Pounds. Hitches that are used for weight distributing are rated up to 15000 Pounds. Gross Trailer Weight(GTW) with a maximum Trailer Tongue Weight(TW) of 1500 Pounds. This style of hitch typically uses a 2 Inch square receiver opening. The use of a ball mount and hitch ball of the same rating or higher is required for weight carrying. To use the weight distribution side of the hitch a weight distribution system is required. Class IV Hitches attach to the vehicle frame only

• Weight - 49.0000
• Class - III/ IV
• Gross Trailer Weight (LB) - 3500 Pounds
• Gross Tongue Weight (LB) - 350 Pounds
• Receiver Size (IN) - 2 Inch
• Includes Ball Mount - No
• Construction - Square Tube Welded
• Drilling Required - No
• Cutting Required - No
• Finish - Powder Coated
• Color - Black
• Material - Steel
• For Use With Roll Pan - No

• 2000-2003 Mazda MPV
