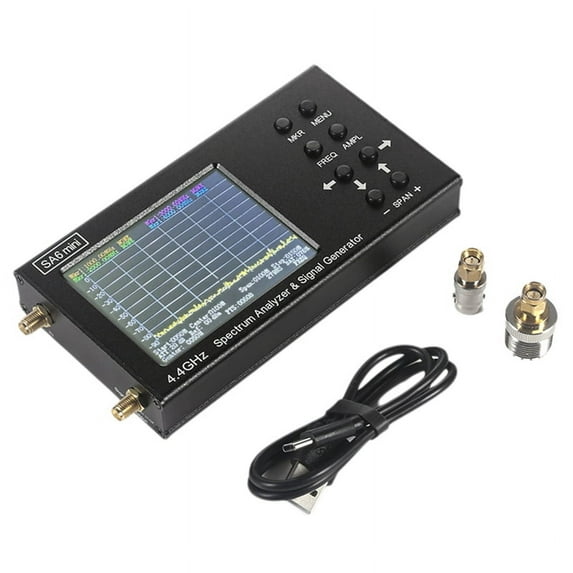

New SA6 Mini Portable Spectrum Analyzer Wi-Fi CDMA Lab 35-4400Mhz Signal

IF bandwidth (fixed) 200 kHz
Sweep speed over 100 MHz 600 MHz/s
Sweep time Less than 0.25 seconds for 100 MHz span
Detectable signal duration 20 ms at 10 MHz sweep span.
Noise floor:
Less than -100 dBm in band up to 3000 MHz
Less than -95 dBm in 3000-4500MHz band
Less than -90 dBm in the 4500-6200 MHz band
Input impedance 50 ohms
SWR Less than 1.5 in the operating frequency range
Internal attenuator 0-30dB
Attenuation error:
Up to 10 dB 2 dB
From 10 to 20 dB 5 dB
From 20 to 30 dB 8 dB
Built-in tracking generator frequency range 35-6200 MHz
Tracking generator output power -15-25 dBm
Accuracy of signal display within dynamic range 2 dB
Maximum input power at 0 dB attenuator +10 dBm
Attenuator 20 dB +20 dBm
Measured maximum input signal +10 dBm
Maximum input DC voltage 5V
Maximum supply current 450mA when running on battery
When running on USB (Charging mode) 500mA
Battery capacity:3000 mAh
Accumulator continuous operating time 3 hours
Battery charging time about 4 hours
Dimensions:155x81x27 mm
Weight:0.49 kg
Colour:Black
Material:ABS

Package Contents:
1 * Portable spectrum analyzer

Only the above package content, other products are not included.
