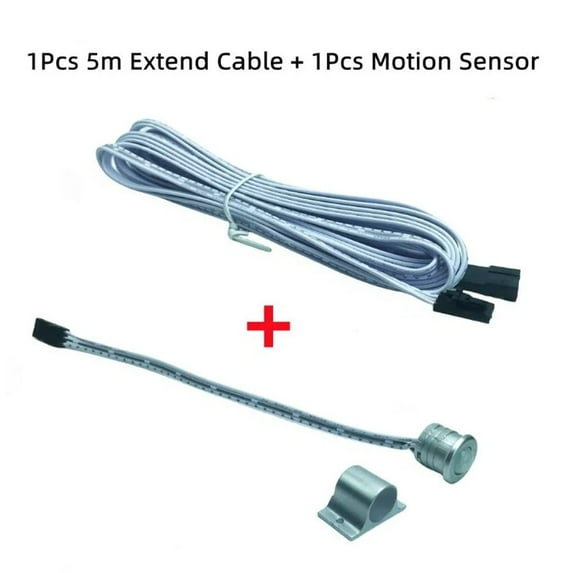

PIR motion sensor and extension cable for staircase LED step light controller 1XSensor 1XCable

PIR Motion Detection Switch with 5m Cable for Stairway Lighting Solutions 1XSensor 1XCable

Features:

Human body induction switch lights up when someone comes and turns off automatically 30 seconds after someone leaves

Specifications:

Part name: Human body induction switch/extension cord

Material: ABS

Color: white

Input voltage: 12V/24V

Induction range: 120 degrees/3 meters

type: connector

Size: 30mm long*17mm high*14mm wide

Carrying power: 12V/60W 24V/100W

Opening size: diameter 15mm, depth 12mm

Extension cord length: 5m

Applicable scope: 12V/24V lamps

Special reminder: The induction switch cannot be directly connected to 22V voltage

After connecting the induction switch, the LED light is always on or off, and the problem can be eliminated as follows

1. Determine whether the driving power supply is 12V/24V and whether the working voltage of the LED light is 12V/24V2. Check whether the positive and negative poles are connected in reverse; the line with text is the positive pole, and the black and white grid is the negative pole3. Check whether the input and output terminals are connected in reverse, the long line is connected to the power supply, and the short line is connected to the LED light

Package content:

1*Sensor

1*Extension cord (5m)

1*Sensor+1*Extension cord

Note:
1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2. Please allow slight manual measurement deviation for the data.
