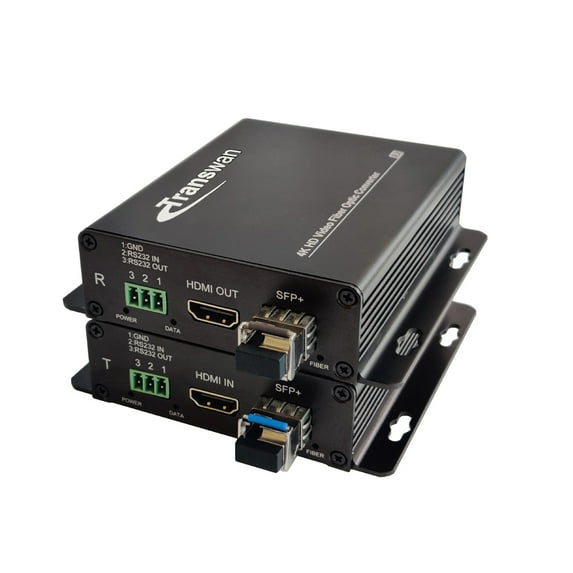

Hero image 0 of Transwan 4K @ 30Hz HDMI with RS232 Data Optic Fiber Extender Over 10 Kilometers Single-Mode Optical, Support HDCP 1.4 and EDID (Over 2 Core Single-Mode Fiber), 0 of 5
Transwan 4K @ 30Hz HDMI with RS232 Data Optic Fiber Extender Over 10 Kilometers Single-Mode Optical, Support HDCP 1.4 and EDID (Over 2 Core Single-Mode Fiber)
(No ratings yet)
Key item features
Features:
- Maximum support 4096*2160@30Hz, be backward compatible
- Support HDCP 1.4 and EDIDï¼›Support RGB4:4:4 YUV4:4:4 4:2:2 4:2:0
- Support DDC CEC HPD signal
- Support 1 channel bidirectional full-duplex RS232
- 10 Km over Dual or Single Single-mode Fiber.
- with SFP module, plug and play, no software drivers needed.
Note:
Connector Type： 4k @ 30 Hz Hdmi Backwards Compatible , RS232
Specs
Optical
Wavelength: 1310-1550nm
Bit rate:10Gbps
Tx power:＞-5db
Rx sensitivity:＞-14db
Fiber connector: 1 x LC, 2 x LC optional
Video
Video bandwidth:10~12 Gbps
Maximum resolution:4096*2160@30Hz backward compatible
Maximum pixel clock:297Mhz
Effective cable length: 10 Meters
Physical interface: HDMI female
RS232 (3-wire system, full duplex) index
Baud rate ： 256000Hz downward compatibility
Data bits： 8 digits
Physical interface： 3-pin phoenix terminal
Mechanical
Dimensions: 104 mm x 100 mm x 83 mm
Weight: 500g per pair
Environmental
Operating Temperature:0° to +50° C
Storage Temperature:-20° to +70° C
Humidity (storage / operating):10% to 90% (non-condensing)
Power Source
Input: 100~240VAC / 50-60Hz
Output: 12V1A
Application:
1. Digital entertainment centers
2. Retail stores
3. AV events that require reliable and long-distance distribution suitable for Data Center, Control Rooms, Conference Rooms, Schools and Corporate Training environment.
Package:
1. 1 x transmitter with SFP module.
2. 1 x receiver with SFP module.
3. 2 x Power Adapter
4. 1 x Manual
About shipment:
Once order received, we will delivery within 1~2 days by DHL for one week arrival
Specs
- BrandTranswan
- CompatibilityHD TV, Blue DVD, HD Camera
- ColorBlack
- CompatibilityHD TV, Blue DVD, HD Camera
- In/Out typeHDMI
- Inputs/OutputsHDMI, RS232
More seller options (1)
Starting from $389.00
About this item
Product details
BY-HDMI-308DF 4K/2K HDMI & RS232 Fiber Optic Extender includes a transmitter and a receiver, which is a high-speed, HDCP compliant fiber optic transport system capable of distributing high resolution 4K HDMI or DVI signals.
Features:
- Maximum support 4096*2160@30Hz, be backward compatible
- Support HDCP 1.4 and EDIDï¼›Support RGB4:4:4 YUV4:4:4 4:2:2 4:2:0
- Support DDC CEC HPD signal
- Support 1 channel bidirectional full-duplex RS232
- 10 Km over Dual or Single Single-mode Fiber.
- with SFP module, plug and play, no software drivers needed.
Note:
Connector Type： 4k @ 30 Hz Hdmi Backwards Compatible , RS232
Specs
Optical
Wavelength: 1310-1550nm
Bit rate:10Gbps
Tx power:＞-5db
Rx sensitivity:＞-14db
Fiber connector: 1 x LC, 2 x LC optional
Video
Video bandwidth:10~12 Gbps
Maximum resolution:4096*2160@30Hz backward compatible
Maximum pixel clock:297Mhz
Effective cable length: 10 Meters
Physical interface: HDMI female
RS232 (3-wire system, full duplex) index
Baud rate ： 256000Hz downward compatibility
Data bits： 8 digits
Physical interface： 3-pin phoenix terminal
Mechanical
Dimensions: 104 mm x 100 mm x 83 mm
Weight: 500g per pair
Environmental
Operating Temperature:0° to +50° C
Storage Temperature:-20° to +70° C
Humidity (storage / operating):10% to 90% (non-condensing)
Power Source
Input: 100~240VAC / 50-60Hz
Output: 12V1A
Application:
1. Digital entertainment centers
2. Retail stores
3. AV events that require reliable and long-distance distribution suitable for Data Center, Control Rooms, Conference Rooms, Schools and Corporate Training environment.
Package:
1. 1 x transmitter with SFP module.
2. 1 x receiver with SFP module.
3. 2 x Power Adapter
4. 1 x Manual
About shipment:
Once order received, we will delivery within 1~2 days by DHL for one week arrival
info:
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here, and we have not verified it. Â
Specifications
Brand
Transwan
Compatibility
HD TV, Blue DVD, HD Camera
Connection
4k @ 30 Hz Hdmi Backwards Compatible, Rs232
Color
Black
Warranty
Warranty information
Please be aware that the warranty terms on items offered for sale by third party Marketplace sellers may differ from those displayed in this section (if any). To confirm warranty terms on an item offered for sale by a third party Marketplace seller, please use the 'Contact seller' feature on the third party Marketplace seller's information page and request the item's warranty terms prior to purchase.
