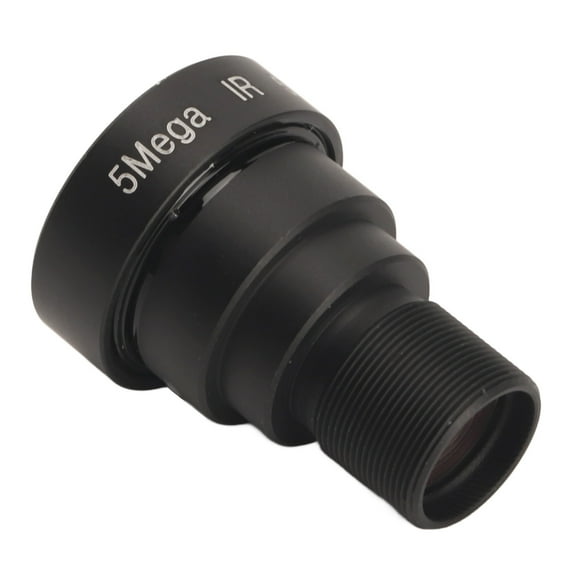

Single Board Lens 50mm 5MP HD M12 Interface Aluminum Alloy for CCTV Security Web Camera

Feature:
1. Universal Fitment: Reliable single board lens with M12 specification interface, which is suitable for most network cameras on the market.
2. Ideal Replacement Part: A 5MP HD lens with 50mm optical focal length, as a pixel upgrade component of the original camera, is a good choice to improve camera sharpness.
3. Easy Installation: The installation method of the webcam replacement lens is very simple. There is a threaded interface at the end, which can be directly rotate mounted.
4. Strong Construction: Made from sturdy aluminum alloy material, which has high strength and toughness. Equipped with a lens cover, when not in use, cover the cover to extend the life of the lens
5. Exquisite Workmanship: Manufactured according to the original production specifications, in line with strict quality standards.

Specification:
Item Type: Single Board Lens
Material: Aluminum Alloy
Resolution: 5MP
Image format: 2/3in
Focal length: 50mm
Aperture: F2.8
Interface Mount: M12 x P0.5
Field angle DXHXV (°)
2/3in 10.1° x 7.6°
1/1.8in 8.2° x 6.1°
1/2in 7.3° x 5.5°
Optical Distortion: 0.35%
Nearest Object Distance (M.0.D.): 0.5m
Mechanical Back Focus (MBF): 5.5mm
Dimension: Φ22×35.5mm
Total optical length (TTL): 41mm
Operation:
Aperture (Iris): Fixed
Focus: Manual
Zoom: Fixed
Operating temperature: -20 ° C ~ +80 ° C

Package List:
1 x

Single Board Lens
