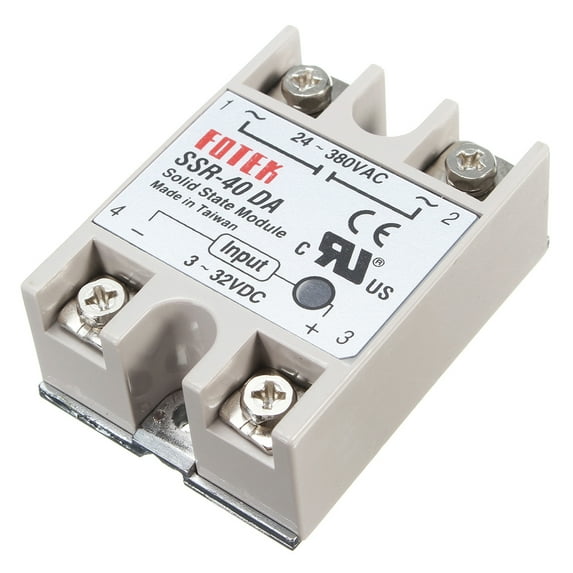

REX C100 Digital PID Temperature Controller Set with 40A SSD 1m K Thermocouple Probe Cable

Feature: 1. PID controller set comes with digital PID REX-C100 temperature controller, maximum 40A SSR, and K thermocouple for your use. 2. This PID temp control is specially designed for one phase solid state relay. 3. Proportional Band (P): 0 to full range (ON OFF control when set to 0). 4. Integral time (I): 0 to 3600 sec (no integral action when set to 0), derivative time (D): 0 to 3600 sec (no derivative action when set to 0). 5. Setting value (SV) is identical to measuring range (PV). Suitable for variety of industries or home projects heating or cooling applications. Specification: REX C100 Temperature Controller: 1.3 Digit setup values 2.Measuring accuracy: ±0.5% 3.Cold end compensation tolerance: ±2℃(can be modified by software in 0-50℃) 4.Resolution: 14 bit 5.Sampling cycle: 0.5 Sec 6.Power: AC 100-240V 50/60HZ 7.Process value (PV), Setting value (SV) 8.Output, and self-tuning can be indicated by: LED 9.PIN control (including ON OFF, step type PID and continuous PID) 10.Self tuning control 11.Relay output: contact capacity 250V AC 3A (resistive load) 12.Proportional band (P): 0-full range (ON OFF control when set to 0) 13.Detective temperature range: 0 to 400℃ 14.Insulation resistant: >50M ohm(500V D-C) 15.Insulation resistant: 1500V AC/min 16.Insulation resistant: Power Consumption < 10 VA 17.Service environment: 0-50℃ 18.Environment with no corrosive g-as 30-85% RH K Thermocouple Probe Cable: 1.Length: 1M 2.Sensor diameter: 4.5mm 3.Temperature range: 0-400℃ 4.Internal Insulation: Fiberglass 5.External Shielding: Insulated Shielding Maximum 40A SSR: 1.Output Current: 40A 2.Input Voltage: DC 3-32V 3.Output Voltage: 24-380V AC 4.Output Voltage Range: Standard Type Item Size: 48 x 12 x 12mm / 1.89 x 0.47 x 0.47in Package List: 1 x PID Temperature Controller 1 x K Type Probe Sensor 1 x Maximum 40A SSR
