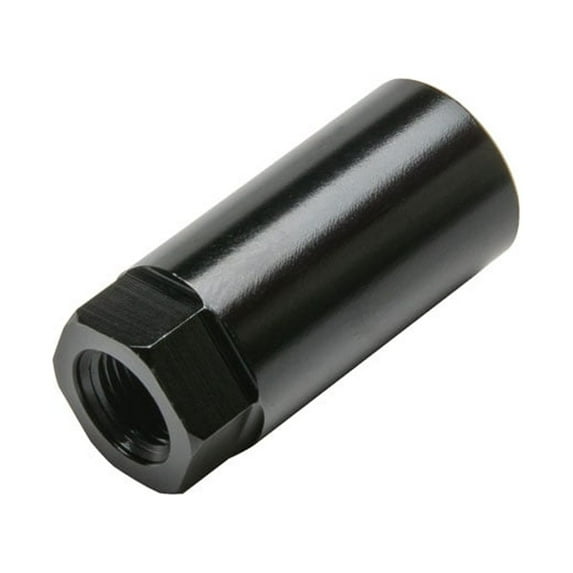

Fuel Rail Thread Adapter for Ford Schrader Valve

Overview
GlowShift’s Fuel Rail Thread Adapter is designed for older Ford cars and trucks all the way up to present day Ford vehicles. It works on multiport fuel injected engines that have a Schrader valve on the fuel rail. This Ford fuel rail pressure adapter installs to the fuel pressure test port for quick and easy monitoring of aftermarket fuel pressure sensors. There is also no need to remove the Schrader Valve during installation. The adapter fittings are machined from aluminum. The front side of the fitting also accepts a standard 1/8-27 NPT fitting for a direct-mount fuel gauge or a gauge sending unit.​

Thread Adapter Installation
To install this Ford fuel pressure adapter, locate the fuel pressure test port on the fuel rail and remove the cap. Thread the fuel pressure sensor into the smooth female end of the adapter and tighten using a 13mm and 22mm wrench. Install the Ford Fuel Rail Adapter to the fuel pressure test port and tighten using a 13mm wrench. ​

Note: If there isn’t a reading on the fuel pressure gauge, the adapter is not depressing the Schrader valve and needs to be adjusted. Remove the adapter and sensor from the adapter. Using a 1/16” Allen key, rotate clockwise to adjust the pin closer to the Schrader valve. Turn counterclockwise to adjust the pin further away. Reinstall once the correct depth is set.

GlowShift Guarantee
GlowShift includes installation instructions, a one year limited warranty and lifetime tech support with each purchase.
