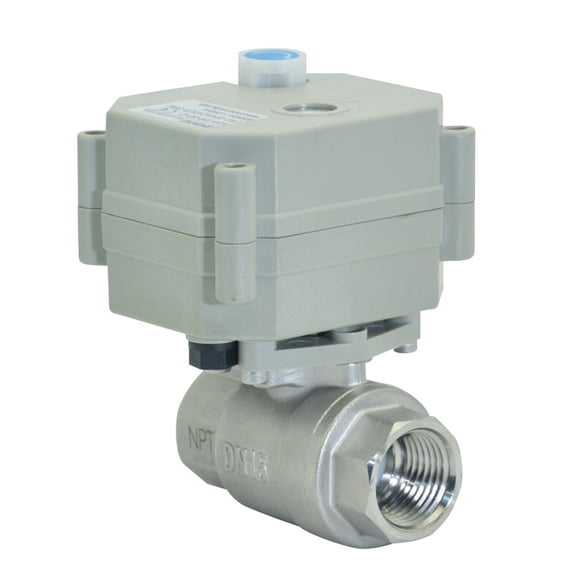

DN20 3/4" Five wires control Normally Closed Electric Ball Valve,AC/DC9-24V Stainless steels Motorized Ball Valve，With indication and manual

Hero image 0 of DN20 3/4" Five wires control Normally Closed Electric Ball Valve,AC/DC9-24V Stainless steels Motorized Ball Valve，With indication and manual, 0 of 5

DN20 3/4" Five wires control Normally Closed Electric Ball Valve,AC/DC9-24V Stainless steels Motorized Ball Valve，With indication and manual

(No ratings yet)

Actual Color:SD-S20 K AC/DC9-24V CR502NC

Key item features

【Wide Range Of Voltage】 9V to 24V, both AC and DC can be used.
【All-metal Gears】 Internal all-metal gears.
【Built-in Position Indicator 】 The position indicator is built into the actuator ,can display the position directly.
【5-wires Normally Closed】 The valve open when power is applied and closed automatically when power is removed.
【With manual function】 For manual operation of the valve in case of unexpected power failure

Specs

Valve type
Ball Valves
Material
Stainless steels
Brand
KEZHAI DREAM
Features
Automatic
Has written warranty
No
Weight
1.21 lb

Current price is $82.99

Price when purchased online

Free shipping
Free 30-day returns

How do you want your item?

Ships to

Arrives between Jun 4 - Jun 10

Sold and shipped by kezhaidream hardware store

Report an issue with this seller

Free 30-day returns

About this item

Product details

Technical Parameter
★ Product Size: 3/4", DN20
★ Valve Shread Option: NPT
★ Circulation Medium: Air, Water, Oil
★ Working Voltage: AC/DC9-24V
★ Wiring Methods: CR502 Normally Closed
★ Working Current: ≤ 500 mA
★ Actuator Material: PPO
★ Valve Body Material: Stainless steels
★ Sealing Material: FKM & PTFE
★ Torque: 3 N.m
★ Protection: IP67
★ Actuator Rotation: 90 °
★ Open/Close Time: ≤ 5 Sec
★ Manual Override:Yes
★ Position Indicator: Yes
★ Power Cord Length: 0.5 m
★ Maximum Working Pressure: 1.0 MPa ( 145 Psi )
★ Environment temperature: -15℃ ~ 50℃ ( 5℉-122℉ )
★ Liquid temperature: 2℃ ~ 90℃ ( 35.6℉-194℉ )

Applicable occasion
♥ 1. HVAC;
♥ 2. Solar water heaters, solar water supply equipment;
♥ 3. Fire fighting equipment, medical equipment, cleaning equipment;
♥ 4. Automatic control system, automatic irrigation and drainage equipment;
♥ 5. Water treatment systems, drinking water equipment, efficient water-saving appliances;
♥ 6. Industrial self-control small equipment, environmental protection and other fields, can be used in occasions where the solenoid valve does not work properly.

【Wide Range Of Voltage】 9V to 24V, both AC and DC can be used.
【All-metal Gears】 Internal all-metal gears.
【Built-in Position Indicator 】 The position indicator is built into the actuator ,can display the position directly.
【5-wires Normally Closed】 The valve open when power is applied and closed automatically when power is removed.
【With manual function】 For manual operation of the valve in case of unexpected power failure
