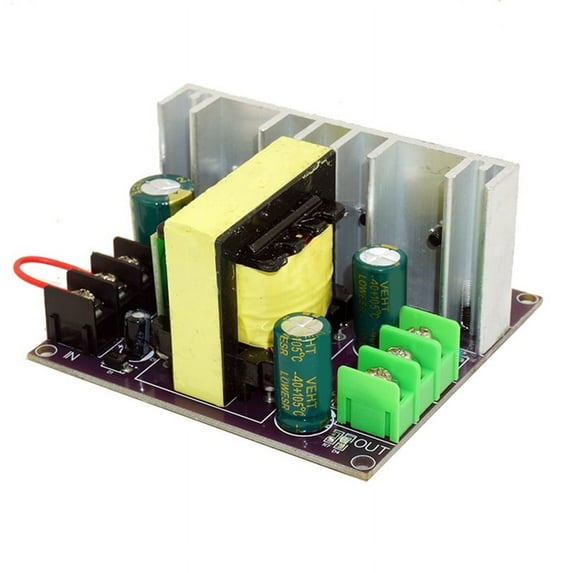

Audio Module Single DC 12V to ± 18V Subwoofer Car Audio Modification Amplifier Isolation Boost Dual Power Module

1. With isolation function, the power board test conditions input DC12V, the ±12V output is about 13-14V without load,
2. The ±18V output is about 19V when no load is applied, and will decrease a bit after being loaded.
3. The power amplifier circuit has a certain voltage adaptability range, it doesn' matter how high or low it is, a few volts.
4. If installed in a car, the actual working voltage of the car is about 13.5V, and the output will be higher.
5. This board does not have a voltage stabilizing open-loop circuit, has small ripple, good transient response, high efficiency and low heat generation, and is suitable for power amplifiers.

Description:
1.Output power: 200W
2. Input voltage: DC10-15V
3. Output current: 200W/output voltage = output current. That is, the higher the output voltage, the smaller the current.
Specifications: ± 18V output
Colour:As Shown
Material:PCB
Size:75x70x36mm

Package Contents:
1x Power Amplifier Module
1x 10A Fuse

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
