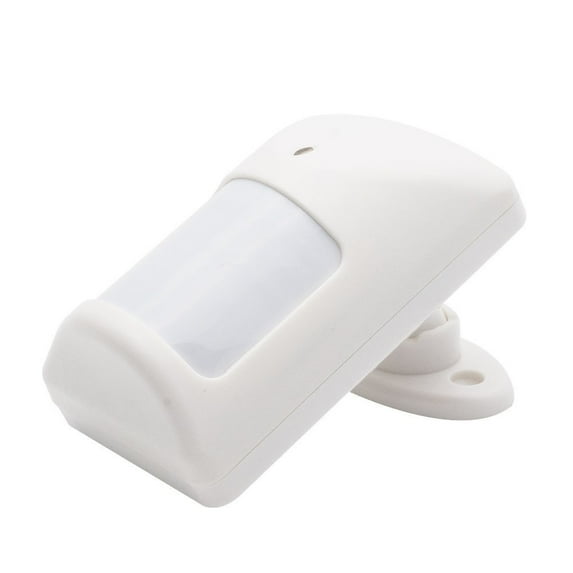

Pet Friendly Infrared PIR Sensor Featuring User Configurable Alarm Outputs

Features:

* SMT design ensures anti-RFI&EMI, providing reliable performance in different environments.

* Adjustable value of three-level pulse allows for customization and flexibility in motion detection settings.

* Alarm output can be configured as N.O or N.C, offering options to suit different security systems.

* Operating voltage range of DC9-16V and consumption current (<18mA at DC12V) ensure efficiency.

* Wall-mounted installation with a recommended mounting height of 2.2m, detecting distance of about 12m, and a wide 110-degree detecting angle enable comprehensive motion detection coverage.

Specifications:

*Product Name: Infrared PIR Motion Detector Pet Tolerant Passive Infrared PIR Motion Detector

*Material:ABS

*Size:11*6*4cm

*Color: White

●SMT design,anti-RFI&EMI

●Adjustable value of three-level pulse

●Alarm output: N.O/N.C optional

●Operating voltage:DC9-16V

●Comsumption current:less than 18mA(DC12V)

●Operating temperature：-10℃ ～+50℃

●Mounting mode:wall-mounted

●Mounting height:2.2m

●Detecting distance:about 12m

●Detecting angle:110 degree

Package Content:

1*Detector

or

2*Detector

Note:

1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2. Please allow slight manual measurement deviation for the data.
