AmScope 5MP High-Speed USB 3.0 Digital Camera New

The MU503B is part of our high-speed camera line. With improved image-processing and USB 3.0 connectivity, this 5MP camera can achieve framerates of up to 101fps. The compact, all-metal design makes this a go-anywhere imaging solution. Deriving power from the USB connection, MU series cameras can be used at home, in a lab, or in the field. The industry-standard C-mount design allows this camera to be connected directly to C-mount photo-ports, or used in conjunction with an array of lenses and adapters to mount to virtually any popular microscope line.

With software available for Windows, Mac, and Linux, the MU series is a multi-platform imaging solution. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. With the ability to calibrate scales at multiple magnifications, the software can be used for multi-level inspection. Independent preview and capture resolutions allow you to view high-speed video while simultaneously capturing high-definition images. For Mac and Linux, there is a lite version of the software which can capture video and still images, and includes limited processing features.

Camera Specifications:

• Sensor: Aptina MT9P006(color)
• Sensor Type: CMOS
• Sensor Size: 5.7x4.28mm (1/2.5" class)
• px Size: 2.2 micrometers
• Resolution: 5.0MP
• Frame Rate: 101.2fps @ 640x480, 38.3fps @ 1280x960, 14.2fps @ 2560x1922
• Sensitivity: 1.76V/Lux-sec
• Connectivity: USB 3.0
• Compatibility: Windows (32/64 bit) XP/Vista/7/8/10, Mac OSX, Linux
• Mounting Sizes: 23mm, 30mm, 30.5mm, and C-mount

• Software Specifications:

• OS Requirements: Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+
• Hardware Requirements: Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB3.0 port for maximum speed
• Advanced software for Windows:
  - offers Stitching, EDF, video recording and measurement functions
  - conducts measurements for lengths, angles, arcs, areas and etc.
  - gives your computer screens the same field of view as your microscope's eyepiece
  - saves still images in BMP, TIFF, JPG, PICT, PTL or other formats
  - live video and still image capture can be set in different resolutions simultaneously
  More features: add layers, watermarks, mosaics, tiles; adjust color balance, exposure, saturation, contrast, orientation; change resolution, histogram, granulation, diffusion; transform images via edge detection, digital image warping; conducts measurements for single, parallel or perpendicular lines and rectangular, elliptical and irregular areas; adds notes, measurements, text, arrows, labels, and etc. using customizable text with different sizes and colors; conducts measurements in microns, millimeters, centimeters, inches, feet, and etc. under any magnification powers with desired tolerances
• Lifetime free software upgrades

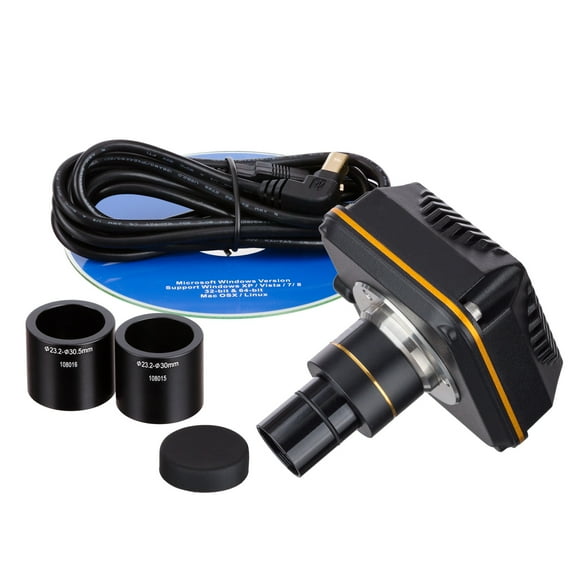

• Contents:

• One 5MP USB3.0 Digital Camera
• One Reduction Lens
• One 6' (1.8m) USB Cable
• Two Adapters: 30mm and 30.5mm
• One CD with Software and User's Instructions
