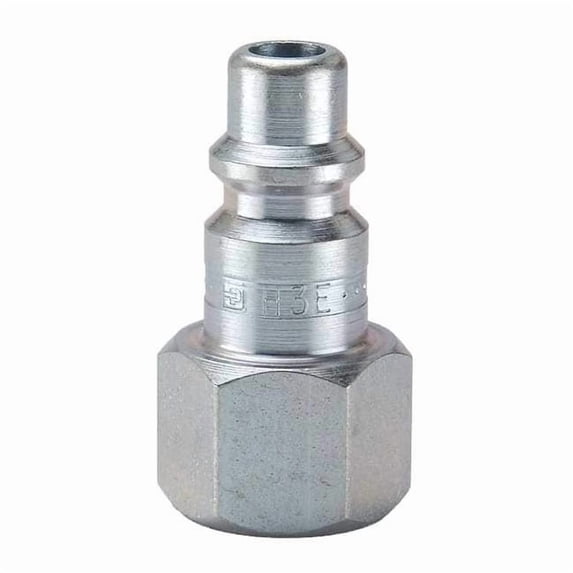

Coupler Plug,Steel,3/4 In. Pipe,110 cfm H3F-G

The PARKER - H3F-G is a pneumatic quick-connect hose coupling for rapid connection and disconnection using an industrial interchange system. It is configured for tool-free connection and disconnection in pneumatic applications using the specified industrial interchange system. Constructed from steel with a trivalent chrome finish, the fitting provides a connection suitable for pneumatic service with a maximum working pressure of 300 psi at 70°F. The coupling features a female hose fitting with a 3/4 in size and a 1/2 in body size for the air coupling connection. It does not include a valve and has a maximum rated flow rate of 3,114.85 liters per minute. The fitting operates within a temperature range of -40°F to 250°F. Key Features: - Application: Pneumatic - Material: Steel with trivalent chrome finish - Connection type: NPT thread, 3/4"-14 thread size - Hose fitting gender: Female - Hose fitting size: 3/4 in - Coupling component: Plug - Coupling size: 1/2 in - Interchange type: Industrial - Max. working pressure: 300 psi @ 70°F - Max. flow rate: 3114.85 lpm - Overall length: 2.31 in - Max. outside diameter: 1.44 in - Temperature range: -40°F to 250°F - Barbed: No - Includes valve: No
