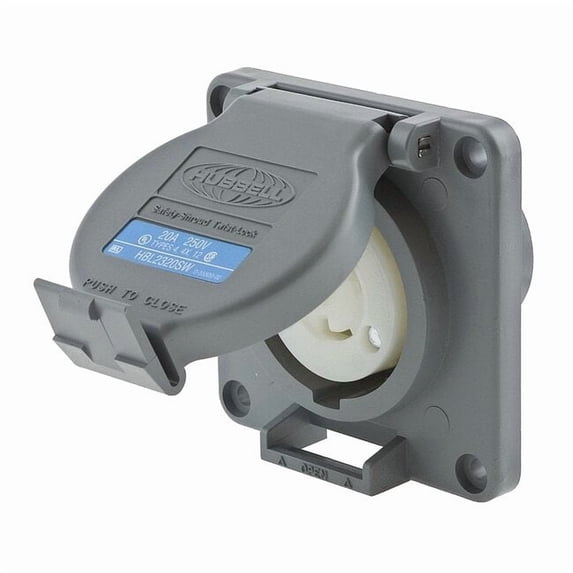

Hubbell Wiring Device-Kellems HBL2320SW

The HUBBELL 20A Watertight Twist-Lock Receptacle is a flanged locking receptacle intended for use in environments where a watertight electrical connection is specified. Rated for 20 amps and 250V AC, this device includes a twist-lock mechanism and visual alignment indicators. The receptacle is rated UL Type 4X for performance both during operation and when closed, making it suitable for environments that require moisture resistance.Key Features of the HUBBELL 20A Watertight Flanged Locking Receptacle: NEMA Configuration: L6-20R; rated for single-phase, 2-pole/3-wire circuitsCurrent/Voltage Rating: 20 A, 250V ACEnclosure Ratings: IP69K; NEMA Types 12, 4, and 4XMaterial Construction: Valox housing and flange; brass contacts; nylon componentsCord Size Compatibility: Accepts wire sizes from 16 AWG to 8 AWG via screw terminalsOperating Temperature Range: -40°F to +167°F (-40°C to +75°C)Flammability Rating: UL94 V0 (housing), V-2 (overall)Mounting Type: Flush mount design with shrouded constructionResistance Properties: Rated IP69K; includes closed-cell neoprene foam gasketSpecial Feature: Includes cover
