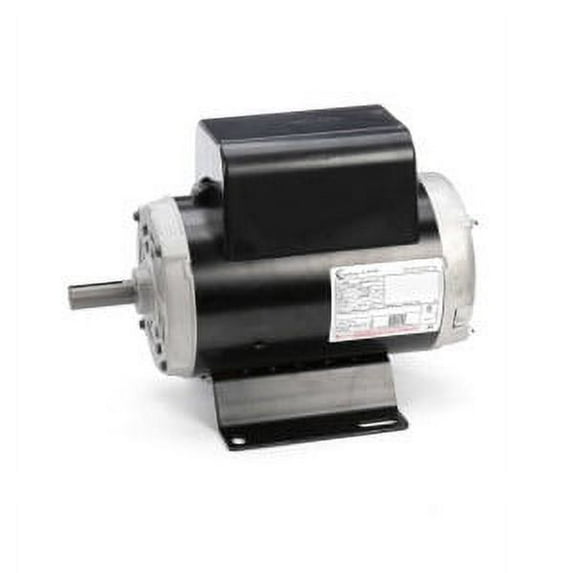

6 HP 3450 RPM R56Y Frame 230V Air Compressor Motor - Century # B387

(No ratings yet)

Key item features

6 HP 3450 RPM, 24.0 amps 230V 60hz
Open Drip Proof - Ball Bearings - Service Factor 1.0
Non-Reversible - CCW Rotation facing the shaft
R56Y Frame; Flat Rigid Base Mount
Manual Overload Protection
Shaft: 7/8" diameter x 2 1/4"

Replacement compressor motor. Motor is designed to be used with a belt driven compressor. Not to be used where the motor is part of the compressor head. Not to be used where the mount is a pivot type mount. 56Y frame is a non standard shaft. Shaft is 7/8" diameter x 2 1/4" with keyway. Shaft height to center of shaft is 4.5" Rigid base mount is standard 182T & 184T. Overall motor length is 14.56" Motor connection diagram is on motor name plate. Capacitor Start/Capacitor Run. Dayton 48Y637

Specs

Electrical phase
Single Phase
Volts
230 V
Maximum motor speed
3450 rpm
Amps
24 Amps
Brand
Century Electric Motor
Has written warranty
No

Current price is $651.58

Price when purchased online

Out of stock

How do you want your item?

Out of stock

Report an issue with this seller

About this item

Product details

Open Drip Proof - Ball Bearings - Service Factor 1.0

6 HP 3450 RPM, 24.0 amps 230V 60hz
Open Drip Proof - Ball Bearings - Service Factor 1.0
Non-Reversible - CCW Rotation facing the shaft
R56Y Frame; Flat Rigid Base Mount
Manual Overload Protection
Shaft: 7/8" diameter x 2 1/4"

info:

We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here, and we have not verified it.

Specifications

Electrical phase

Single Phase

Volts

230 V

Maximum motor speed

3450 rpm

Amps

24 Amps
