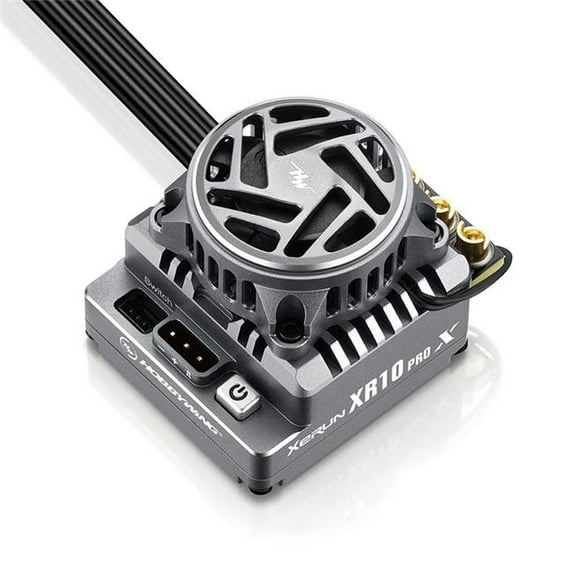

Hobbywing HWI30112620 Xerun XR10 Pro G3X Electronic Speed Control for RC Vehicle

Xerun XR10 Pro G3X Electronic Speed Control for RC Vehicle.

• The XR10 PRO G3X ESC is purpose-built for 1/10th Stock class racing, offering optimized performance and precision control. Featuring a HOBBYWING trade secret that handles aggressive current without generating extra heat, it reduces resistance and maximizes performance. With advanced features and settings, it delivers exceptional power and responsiveness, giving racers a competitive edge
• Three selectable profiles are all 1/10th RC car racing. To accommodate various racing conditions, the firmware includes three easy-to-select preset modes. Users can customize and rename these modes to suit their control preferences, track conditions, etc. For example, '1/10 On-Road' can be renamed to 'ROAR2025_SPEC_13.5' to indicate a race using a 13.5T motor at the 2025 ROAR event. These profiles can be saved for future reference
• An internal electronic key switch ensures long service life and high reliability, while the external switch port allows for the connection of an external switch, offering flexibility for various installations
• The separate programming port can power an external fan or connect to an LCD Program Box Pro or OTA Programmer for the ESC
• Variable frequency regulation of PWM and brake frequencies allows users to precisely control the driving and braking forces of the motors
• The softening function, Patent developed by HOBBYWING, enhances power delivery tuning and improves driving efficiency
• Disc Brake mode, an innovative feature by HOBBYWING, provides smoother and stronger braking performance
• Multiple protections include, low-voltage cutoff protection (LVC), ESC and motor thermal protection, and fail-safe (throttle signal loss protection)
• The ESC features a built-in data recording module, eliminating the need to constantly connect to the OTA Bluetooth module. After use, connecting to the OTA Bluetooth module allows users to view various performance data

• Continuous Peak Current: 160A/1200A
• Motor Type: Sensored / Sensor less Brushless Motors
• Scale: 1:10
• LiPo Cells: 2S LiPo
• BEC Output: 5-7.4V Adjustable, Continuous current of 5A
• Wire Gauge: 12AWG
• Size: 35.0 x 33.6 x 30.3 mm
• Recommended Motor: HOBBYWING V10 brushless Motors (13.5T-25.5T)
