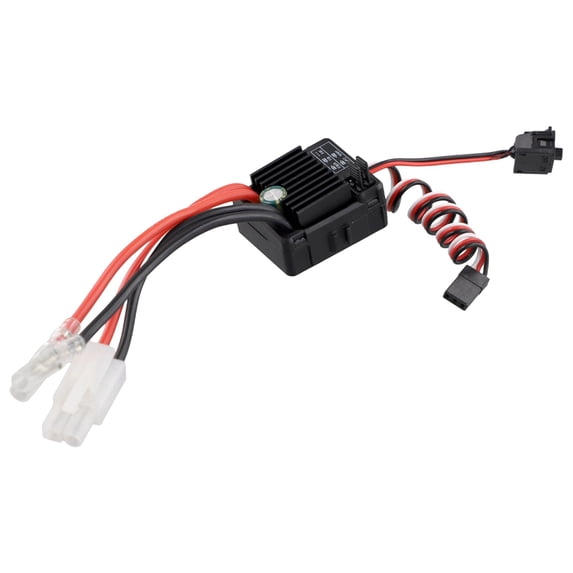

RC 1060 Brushed ESC 60A 2-3S LiPo Electric Speed Controller

High efficiency design, light weight, reliable and very affordable.quality Water-proof and dust-proof,suitable for different Situations.
Compact size, suitable for various car chassis.
Easy to set and easy to use the ESC parameters with and automatic throttle range calibration.
Great current endurance capability and Great built-in BEC output capacity.
Small size with built-in capacitor module.
Multiple protections: Low voltage cut-off protection for battery / Over-heat protection / Throttle signal loss protection.
(Fwd =Forward, Br=Brake, =Reverse)
Fwd. Cont. / Current: 60A /360A
. Cont. / Current: 30A /180A
Voltage Range: 2-3S Lipo or 5-9 NiMH
Cars Applicable: 1/10: Touring Car, , Short Course Truck, , Truggy, Rock Crawler and Tank
Motor Limit:
2S Lipo or 6 NiMH
540 or 550 Size Motor: ≥12T Or RPM Less than 30000 @7.2V
3S Lipo or 9 NiMH
540 or 550 Size Motor: ≥18T Or RP M Less than 20000 @7.2V
4S Lipo or 12 NiMH

Resistance: Fwd 0.001Ω, 0.002Ω
BEC Output: 2A/5V (Linear Mode)
PWM Frequency: 1KHz
Running Modes: Forward/Reverse/Brake, Forward/Brake, Forward/Reverse
Size Chart:
Size:34x28x22mm/1.3x1.1x0.9inch
Colour:As Shown
Material:plastic

Package Contents:
1 x RC Upgrade Parts kit

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
