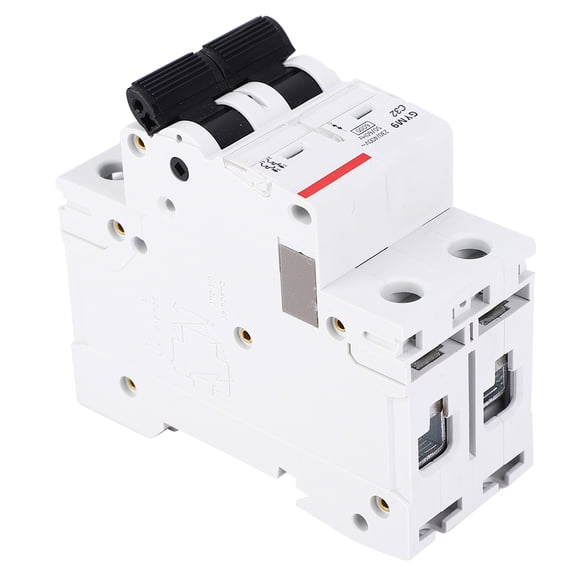

Residual Current Circuit Breaker, Leakage Circuit Breaker, Electronic Leakage Protector 32A Commerce Household For Building Lighting High-rise Building

Hero image 0 of Residual Current Circuit Breaker, Leakage Circuit Breaker, Electronic Leakage Protector 32A Commerce Household For Building Lighting High-rise Building, 0 of 8

LYUMO

Residual Current Circuit Breaker, Leakage Circuit Breaker, Electronic Leakage Protector 32A Commerce Household For Building Lighting High-rise Building

(No ratings yet)

Key item features

Residual Current Circuit Breaker, Leakage Circuit Breaker, Electronic Leakage Protector 32A Commerce Household for Building Lighting High-rise Building
GYM9 miniature circuit breaker is mainly for against overload and short circuit under the AC 50Hz, 60Hz, rated voltage 230V, 400V and rated current 16, 25, 32A optional
It also can be for non-frequent on-and-off switch under normal circumstance
In compliance with IEC, EN60898-1
With indicator function in the contact position
Transparent cover designed to carry label
Bilateral busbar wiring capabilities to adapt to the wider use of premises
Maximum connecting ability of 25mm2, wiring 3Nxm, applicable to a variety of installing equipment
Rated Current Input: 16A, 25A, 32A
Optional Pole: 2P Rated Voltage Ue: 400VAC
Insulation Voltage Ui: 500V Rated Frequency: 50, 60Hz Rated
Package List: 1 x Miniature Circuit Breaker

Specs

Amps
32 Amps
Number of poles
2
Volts
230 V
Brand
LYUMO
Features
Magnetic
Has written warranty
No

Current price is $13.73

Price when purchased online

Out of stock

How do you want your item?

Out of stock

Report an issue with this seller

About this item

Product details

Residual Current Circuit Breaker, Leakage Circuit Breaker, Electronic Leakage Protector 32A Commerce Household for Building Lighting High-rise Building
Specification:
Features: 1. GYM9 miniature circuit breaker is mainly for against overload and short circuit under the AC 50Hz/60Hz, rated voltage 230V/400V and rated current 16/25/32A optional. 2. It also can be for non-frequent on-and-off switch under normal circumstance. 3. In compliance with IEC/EN60898-1. 4. With indicator function in the contact position. 5. Transparent cover designed to carry label. 6. Bilateral busbar wiring capabilities to adapt to the wider use of premises. 7. Maximum connecting ability of 25mm2, wiring 3Nxm, applicable to a variety of installing equipment. Specification: Rated Current Input: 16A, 25A, 32A Optional Pole: 2P Rated Voltage Ue: 400VAC Insulation Voltage Ui: 500V Rated Frequency: 50/60Hz Rated Breaking Capacity: 4500/6000A Rated Impulse Withstand Voltage1.2/50 Uimp: 6kV Insulation Test Voltage within 1 minute: 2kV Pollution Degree : 2 Thermal Magnetic Release Characteristics: B C D Electrical Life: 4000 Mechanical Life: 10000 Rating: IP20 Reference Temperature for Setting of Thermal : 30 degrees Celsius Ambient Temperature: daily average Less than or equal to 35 degrees Celsius -5~40 degrees Celsius Storage Temperature: -25~70 degrees Celsius Package List: 1 x Miniature Circuit Breaker

Residual Current Circuit Breaker, Leakage Circuit Breaker, Electronic Leakage Protector 32A Commerce Household for Building Lighting High-rise Building
GYM9 miniature circuit breaker is mainly for against overload and short circuit under the AC 50Hz, 60Hz, rated voltage 230V, 400V and rated current 16, 25, 32A optional
It also can be for non-frequent on-and-off switch under normal circumstance
In compliance with IEC, EN60898-1
With indicator function in the contact position
Transparent cover designed to carry label
Bilateral busbar wiring capabilities to adapt to the wider use of premises
Maximum connecting ability of 25mm2, wiring 3Nxm, applicable to a variety of installing equipment
Rated Current Input: 16A, 25A, 32A
Optional Pole: 2P Rated Voltage Ue: 400VAC
Insulation Voltage Ui: 500V Rated Frequency: 50, 60Hz Rated
Package List: 1 x Miniature Circuit Breaker

info:

We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here, and we have not verified it.

Specifications

Amps

32 Amps

Circuit breaker type

Residual Current Circuit Breaker

Number of poles

Volts

230 V
