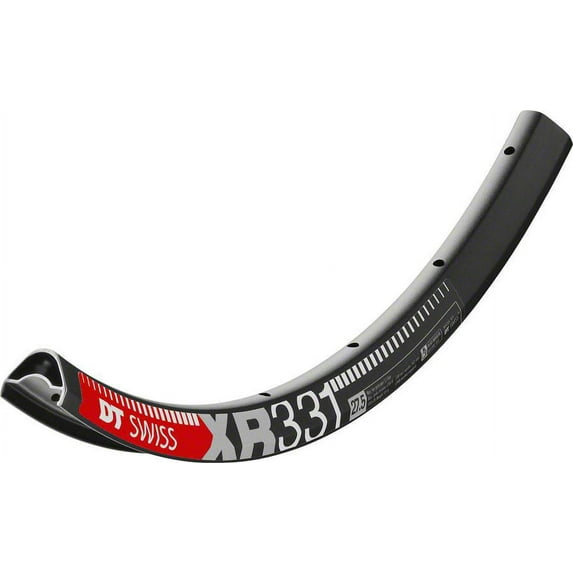

DT Swiss XR 331 27.5" Tubeless-Ready Disc Rim 28h Black with Squorx Nipples

DT Swiss XR 331.XC stands for fast uphills and passing in the downhills. As a result of elaborate finite element analysis, DT Swiss XC rims employ material only where it‘s needed.

• The wheel must be built with the supplied PHR washers and Pro Head nipples. The PHR washer must be positioned between the nipple and rim and fit correctly within the radius of the rim. DT Swiss recommends that the contact area between the nipple and PHR washer is greased
• Intended use is XC race and XC riding
• ERD and weights shown include PHR washers
• Recommended tire size: 1.7" - 2.4"
• 2.0 silver alloy Prolock Squorx Pro Head nipples and PHR washers included
• Pro Head Reinforcement System (PHR) has a larger and more spherical contact area and is designed to balance loads transferred to the rim. The PHR system acts like a ball and socket interface allowing the spoke to pivot and follow the perfect trajectory from hub to rim
• Same rim as used on DT XR 1501 Spline One wheelsets

Item Specifications
Color	Black
Weight	355
Hub Drilling	28
Rim Depth	18
Manufacturer Spec ERD	568
Valve	Presta
ISO Diameter	584 / 650b / 27.5"
Valve Length	Short
Wheel Size	27.5"
Tire Type	Tubeless Compatible
Rim Center Offset	0
Rim Joint	Welded
Brake Track	None
Rim Width (External)	24
Rim Material	Alloy
Eyelets	None
Rim Width (Internal)	20
