2.125" OD, 0.065" Wall, (1.995" ID) x 24 inches, DOM Steel Round Tube, Cold Drawn

DOM Steel tube (Drawn over Mandrel) is a cold drawn. electric welded tube with all flash removed from both OD and ID. Each tube is tested for weld soundness, drawn over a mandrel and retested. DOM Steel Tubing has a superior finish and wall uniformity compared to seamless tubing. Wall thickness 0.134 and lighter are made 1020 steel, 10 gauge and thicker material is 1026 steel.

• Material: Steel
• Alloy: 1020/1026
• Temper: DOM
• Outside Diameter: 2.125 inch
• Inside Diameter: 1.995 inch
• Length: 24 inches
• Finish: Cold Drawn
• Shape: Round Tube
• Specifications: ASTM A513 Type 5
Notes: Tolerances:
• Up to 0.499, OD (-0/+0.004") ID (+0/-0.003)
• 0.500 to 1.699 OD (-0/+0.005") ID (+0-0.005)
• 1.700 to 2.099 OD (-0/+0.006) ID (+0/-0.006)
• 2.100 to 2.499 OD (-0/+0.007) ID (+0/-0.007)
• 2.500 to 2.899 OD (-0/+0.008) ID (+0/-0.008)
• 2.900 to 3.299 OD (-0/+0.009) ID (+0/-0.009)
• 3.300 to 3.699 OD (-0/+0.010) ID (+0/-0.010)
• 3.700 to 4.099 OD (-0/+0.011) ID (+0/-0.011)
• 4.100 to 4.499 OD (-0/+0.012) ID (+0/-0.012)
• 4.500 to 4.899 OD (-0/+0.013) ID (+0/-0.013)
• 4.900 to 5.299 OD (-0/+0.014) ID (+0/-0.014
• 5.300 to 5.549 OD (-0/+0.015) ID (+0/-0.015)
• 5.550 to 6.000 OD (+/-0.015) ID (+/-0.015)

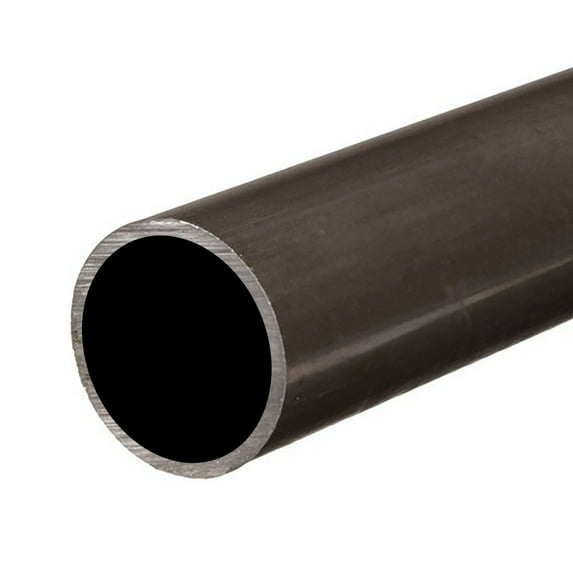

Picture is stock photo, please refer to details for size and alloy.
