Hero image 0 of AudioControl EQX (White) 2 Channel Trunk-Mount 13 Band Equalizer with Crossover, 0 of 2

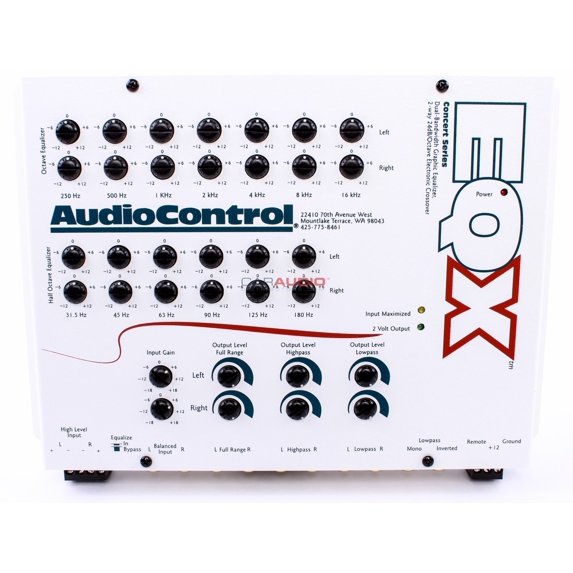

AudioControl EQX (White) 2 Channel Trunk-Mount 13 Band Equalizer with Crossover

Name: AudioControl EQX (White) 2 Channel Trunk-Mount 13 Band Equalizer with Crossover
Brand: Audio Control
SKU: 125802990
Price: 219.94 USD
Availability: OutOfStock

(No ratings yet)

Key item features

General Features

Trunk Mount Stereo Equalization with Crossover
Line and Speaker Level Inputs
Preamp Inputs: 1 (2 channels)
Speaker Level Inputs: 1 (2 channels)
6 Band, 1/2 Octave Bass EQ
7 Band, Octave Equalizer
Two-way 24dB/Octave Linkwitz-Riley Crossover
Variable Gain Controls
Balanced Inputs
Input and Output Level Matching Controls

Specifications

Frequency Response: 10 - 20,000 Hz + 1 dB
Total Harmonic Distortion (THD): 0.005%
Signal to Noise Ratio (SNR): 110 dB at full output
Maximum Output Level: 9.5 Vrms
Input Gain: ± 18 dB
Crossover Slope: 24 dB per octave
Crossover Type: 2-way Linkwitz-Riley
Programmable Crossover Frequency: 50 - 6500 Hz
PFM Filter Slope: 18 dB per octave
PFM Frequency: Programmable 15 - 100 Hz
Power Supply: Transformer-isolated switch mode
Fuse Rating: 2 amps
Balanced Input Yes
Ground Isolation Jumpers Yes
Country of origin: USA

Specs

Brand
Audio Control
Dimensions
11.75 x 9.25 x 3.50 Inches
Weight
3.47
Has written warranty
No

Current price is $219.94

Price when purchased online

Out of stock

How do you want your item?

Out of stock

Report an issue with this seller

About this item

Product details

Features:

dual 13-band equalizers with level matching controls
white steel chassis with gold-plated RCA jacks
Linkwitz-Riley 2-way crossover (90 Hz at 24 dB/octave)
top-mounted controls for easy adjustment
preamp- and speaker-level inputs
6-channel outputs: full range, high-pass, and low-pass
balanced inputs eliminate noise
33 Hz subsonic filter eliminates extreme low bass (rolloff point can be adjusted with optional module)
EQ points: 31.5, 45, 63, 90, 125, 180, 250, 500, 1000, 2000, 4000, 8000, 16000 Hz
frequency response: 10 to 20,000 Hz
signal-to-noise ratio: 110 dB at full output
maximum output level: 9.5 volts
fuse rating: 2 amps
size: 6-15/16"H x 8-15/16"W x 1-1/4"D

General Features

Trunk Mount Stereo Equalization with Crossover
Line and Speaker Level Inputs
Preamp Inputs: 1 (2 channels)
Speaker Level Inputs: 1 (2 channels)
6 Band, 1/2 Octave Bass EQ
7 Band, Octave Equalizer
Two-way 24dB/Octave Linkwitz-Riley Crossover
Variable Gain Controls
Balanced Inputs
Input and Output Level Matching Controls

Specifications

Frequency Response: 10 - 20,000 Hz + 1 dB
Total Harmonic Distortion (THD): 0.005%
Signal to Noise Ratio (SNR): 110 dB at full output
Maximum Output Level: 9.5 Vrms
Input Gain: ± 18 dB
Crossover Slope: 24 dB per octave
Crossover Type: 2-way Linkwitz-Riley
Programmable Crossover Frequency: 50 - 6500 Hz
PFM Filter Slope: 18 dB per octave
PFM Frequency: Programmable 15 - 100 Hz
Power Supply: Transformer-isolated switch mode
Fuse Rating: 2 amps
Balanced Input Yes
Ground Isolation Jumpers Yes
Country of origin: USA
