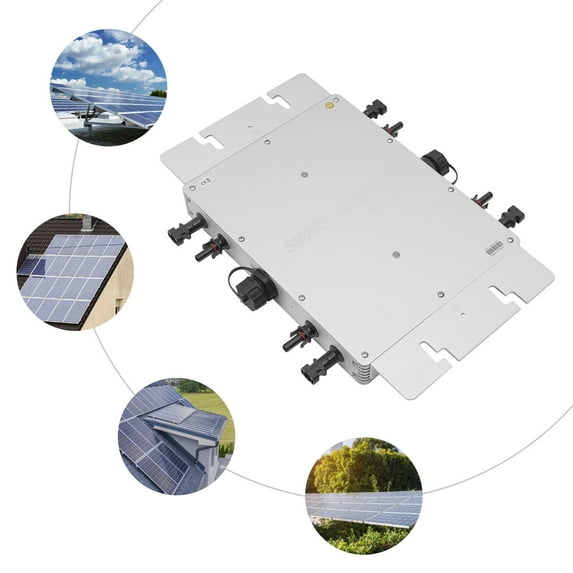

Hero image 0 of 1400W Solar Grid Tie Micro Inverter Grid Tie&Off-grid DC to AC 110V Commercial, 0 of 23

1400W Solar Grid Tie Micro Inverter Grid Tie&Off-grid DC to AC 110V Commercial

(No ratings yet)

Key item features

Premium Material: The inverter is made of aluminum alloy, which is durable, corrosion-resistant, and not easy to rust. You can use it for a long time without frequent replacement, and your cost can be saved. High Efficiency: The product adopts a unique circuit design, imported industrial electronic components, isolated high-frequency transformer, and unique MPPT technology, with efficiency greater than 99%, so it can achieve sensitive response and more stable maximum power point locking. Digital Control: The inverter adopts intelligent soft switching technology, high-frequency switching power supply technology, and 32-bit DSP full digital SPWM control technology, making the product strong anti-interference ability, fast operation speed, high intelligence, and a powerful functional system, which can meet the needs of users. Electrical Isolation: The output and input of the system are completely electrically isolated, the insulation performance of the entire power distribution system is good, and the fully isolated booster circuit is safer and more reliable. Good Heat Dissipation Effect: The product adopts a self-cooling system and is designed with heat dissipation holes, which can timely reduce the temperature during operation, reduce potential safety hazards and extend the applicable life of the product. Safety Guard: The inverter has six protection functions: over-temperature protection, under-voltage alarm, under-voltage protection, over-voltage protection, short circuit protection, overload protection, etc. Besides, the IP65 waterproof design can prevent rain from eroding its surface, so you can use it with confidence. Easy Maintenance: After the installation of the power station, you don't need to do maintenance work. After a long period of use, you only need to remove the dust from the photovoltaic panel. Small Footprint: With a size of 8.27*1.57*14.72inch, the inverter adopts high-frequency telephone, micro processing, and other technologies, so it is smaller, lighter, and won’t occupy too much space. Flexible Installation Mode: During installation, you can stack multiple inverters at will, form a single-phase parallel stacking system, or conveniently form a three-phase system to provide a three-phase AC. At the same time, we also provide a detailed manual and various accessories. You just need to follow the steps to install them.
Details

Gasket: The inverter is equipped with two gaskets to help you install the photovoltaic support, making the inverter more stable.

Round Corners: The corners of this product are very round, which can effectively reduce your skin scratches during installation or movement.

LED Indicator: The product uses an LED indicator, which mainly has two colors: red light and green light. You can master the product situation in time according to the color and flicker of the light, which is very convenient.

Specs

Surge wattage
1400 W
Volts
110 V
Features
LED Indicator
Assembled product height
1.57"
Weight
9.26 lbs
Color
Silver

Current price is $200.00

Price when purchased online

Free shipping
Free 30-day returns

How do you want your item?

Columbus, 43215

Arrives by Fri, Apr 10

Sold and shipped by DOMUS DESIGN INC

3.9343936381709743 stars out of 5, based on 503 seller reviews(3.9)

Report an issue with this seller

Free 30-day returns

More seller options (1)

Starting from $200.00

About this item

Product details

Specification

Model: WVC-1400W

Color: Silver

Material: Aluminium Alloy

Power: 1400W

Voltage: 110V

Plug Type: US Standard

Maximum Input DC Voltage: 54V

Peak Power Tracking Voltage: 22-45V

Operating Voltage Range: 17-50V

Min/Max Start-up Voltage: 22-50V

Maximum DC Short Circuit Current: 80A

Maximum Input Operating Current: 58A

Output Peak Power: 1400watt

Rated Output Power: 1350watt

Rated Output Current: 12.8A

Rated Voltage Range: 80-160VAC

Rated Frequency Range: 57-62.5Hz

Power Factor: ＞99％

Number of Circuit Connections Per String: 3

Static MPPT Efficiency: 99.5%

Maximum Output Efficiency: 91.2%

Night Time Power Loss: <1W

Total Flow Distortion: <5%

Operating Temperature Range: ﹣40℃~60℃/﹣40℉~140℉

Waterproof Rating: IP65

Cooling Method: Self-cooling

Communication Mode: Power Line Carrier

Power Transmission Mode: Reverse Transmission, Load Priority

Gross Weight: 4.2kg/9.26lbs

Net Weight: 3kg/6.61lbs

Product Size: 21*37.4*4cm/8.27*14.72*1.57inch

Package Size: 48*35*12cm/18.9*13.78*4.72inch

How to Install

Step 1: Install the inverter on the support of the photovoltaic panel with the screws provided by the machine.

Step 2: Connect the positive and negative poles of the DC connection plug on the photovoltaic panel to the DC input terminal of the inverter.

Step 3: Open the waterproof cover of the AC output interface of the inverter and connect the AC cable to the AC waterproof plug.

Step 4: Connect the AC output cable to the AC main cable.

Step 5: Repeat steps 1 to 3 to install and connect all inverters.

Step 6: Connect the AC main cable to the public grid and start your green energy journey.

Package Included

1* Solar Grid Tie Micro Inverter

1* Power Cord

2* Manuals(English+Chinese)

1* Warranty Card

Other Accessories for Installation

Notes

Please install the inverter correctly according to the instructions. If you have any questions, please contact the relevant personnel.
Please don’t dismantle the machine. Only qualified maintenance personnel can repair the inverter.
Please install the inverter in a place with low humidity and good ventilation to avoid overheating the inverter and remove the surrounding inflammable and explosives.
When using this inverter, please take good care of your children to prevent them from touching and playing to avoid electric shock.
Please note that connected solar panels, batteries, or wind generators DC input DC power supply cable.
Please note that this inverter does not have a monitoring function.
Please note that our products are grid-connected, the AC output port has to be connected to the home grid in order to achieve grid-connected power generation.
When the input load is with solar panels, it is important that the VOC voltage is between 30-48V. We recommend that the solar panel is configured for 20% more power than the power of the product. For example, if the product is 600W, the total power of the solar panels should be between 700-750W. If the product is 1200W, the total power of the solar panels should be between 1200-1400W.
When the input load is a battery, we recommend a battery voltage of 36V, which can be connected in series with 3 12V batteries. Please note that the positive and negative polarity should not be reversed when connecting the product. The recommended battery current is 36V/10mah for 300W, 36V/20mah for 600W, and 36V/40-45mah for 1200W.
The input and output voltage of the configuration is within the normal operating voltage range of the product in order for the product to work properly and achieve grid-connected power generation.

Premium Material: The inverter is made of aluminum alloy, which is durable, corrosion-resistant, and not easy to rust. You can use it for a long time without frequent replacement, and your cost can be saved. High Efficiency: The product adopts a unique circuit design, imported industrial electronic components, isolated high-frequency transformer, and unique MPPT technology, with efficiency greater than 99%, so it can achieve sensitive response and more stable maximum power point locking. Digital Control: The inverter adopts intelligent soft switching technology, high-frequency switching power supply technology, and 32-bit DSP full digital SPWM control technology, making the product strong anti-interference ability, fast operation speed, high intelligence, and a powerful functional system, which can meet the needs of users. Electrical Isolation: The output and input of the system are completely electrically isolated, the insulation performance of the entire power distribution system is good, and the fully isolated booster circuit is safer and more reliable. Good Heat Dissipation Effect: The product adopts a self-cooling system and is designed with heat dissipation holes, which can timely reduce the temperature during operation, reduce potential safety hazards and extend the applicable life of the product. Safety Guard: The inverter has six protection functions: over-temperature protection, under-voltage alarm, under-voltage protection, over-voltage protection, short circuit protection, overload protection, etc. Besides, the IP65 waterproof design can prevent rain from eroding its surface, so you can use it with confidence. Easy Maintenance: After the installation of the power station, you don't need to do maintenance work. After a long period of use, you only need to remove the dust from the photovoltaic panel. Small Footprint: With a size of 8.27*1.57*14.72inch, the inverter adopts high-frequency telephone, micro processing, and other technologies, so it is smaller, lighter, and won’t occupy too much space. Flexible Installation Mode: During installation, you can stack multiple inverters at will, form a single-phase parallel stacking system, or conveniently form a three-phase system to provide a three-phase AC. At the same time, we also provide a detailed manual and various accessories. You just need to follow the steps to install them.
Details

Gasket: The inverter is equipped with two gaskets to help you install the photovoltaic support, making the inverter more stable.

Round Corners: The corners of this product are very round, which can effectively reduce your skin scratches during installation or movement.

LED Indicator: The product uses an LED indicator, which mainly has two colors: red light and green light. You can master the product situation in time according to the color and flicker of the light, which is very convenient.
