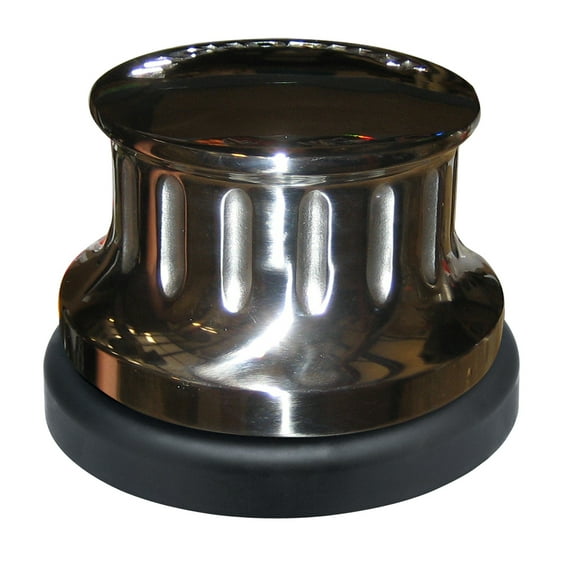

Maxwell ANCHORMAX Windlass

ANCHORMAX™ Windlass

Features:

• Has an extremely high power to weight ratio

• ompact, fully sealed gearbox is driven by a vertically mounted, permanent magnet motor

• Intrusion below decks is minimised making the design ideal for boats from 5m (16ft) to 10m (32ft)

• Fitting to the boat is simplicity itself as no dismantling of the winch is required

• Gear housings are marine-grade alloy and the drum is stainless steel

• Supplied as a single direction (clockwise) unit, complete with deck switch, fastenings, template and fitting instructions

• Not recommended for use to haul halyards

• Not recommended for use to haul chain

Note: Each winch is supplied as a single direction (clockwise) fully tested unit complete with fitting instructions, deck switch, templates and fastenings.

STANDARD EQUIPMENT

• Footswitch

SPECIFICATIONSMaximum Line Pull386kg (850lb)Speed @ nominal working load24m/min (76ft per min) (80 amps with 100kg/220lb load)Voltage12vPower600wWeight8kg(17.6lb)Maximum Boat Load10m (33ft)Max. Boat Weight4 Tons
