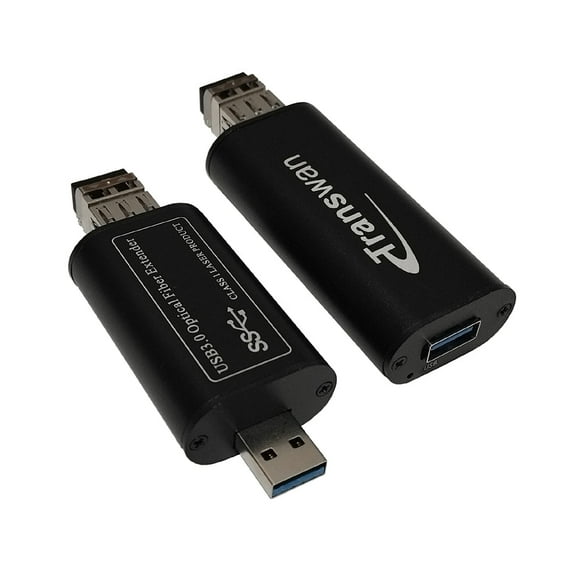

Mini USB 3.0 Fiber Extender to Max 250 Meters over Single-mode Fiber w/ SFP module, Support 5Gbps Speed

Description:
BY-USB-912 includes a transmitter（client-side） and a receiver（host-side）, which can extend the Super speed USB 3.0 to a remote location over 1 or 2 core single-mode optical fiber cable, Max distance 250 Meters(820FT).

Supported Typical USB 3.0 Devices (the last image):
1). USB 3.0 Camera:
RealSense, XiQ USB 3.0 Camera, Kinect Devices, EMCCM camera etc
2). Instruments:
Data Acquisition, Spectrum Analyzer, Oscilloscope, Ultrasonic Testing etc
3). Aduio Device:
Stereo D to A Converter etc
4). Computer Peripherals:
Keyboard Controller, USB 3.0 Printer, USB 3.0 Flash Drive etc
5.) Others

Application:
1.Industrial video transmission
2.USB 3.0 Vision cameras
3.HD video surveillance system.
4.High - speed data acquisition system
5.Remote storage.
6.Digital signage and TV wall.
7.Industrial printer system.
8. VA/VR systems.

SPECS
Optical:
Fiber Connector: 2 x LC or 1 x LC
Wavelength: 1310nm
Support Fiber types: 9/125μm
Physical:
Size (L× W ×H): 1) Transmitter: 88.50 x 32.80 x 17.80 mm ; 2) Receiver: 84.3 x 33 x 17.8 mm
Case Material:Aluminum
Color:Black
N.W.:0.75Kg
Power Voltage: 5V DC
Sender power consumption:<10W
Receiver power consumption:<5W
Environment:
Working temperature:0℃-50℃
Storage temperature:-40-85℃
Humidity: 0-95% (non-condensing)

Package:
1. 1 x transmitter (client side) with SFP module.
2. 1 x receiver (host side) with SFP module.
3. 1 x Power Adapter DC 5V with US/UK/AU plug for the transmitter, so the USB 3.0 devices can be powered by it as well.
4. 1 x Manual.
