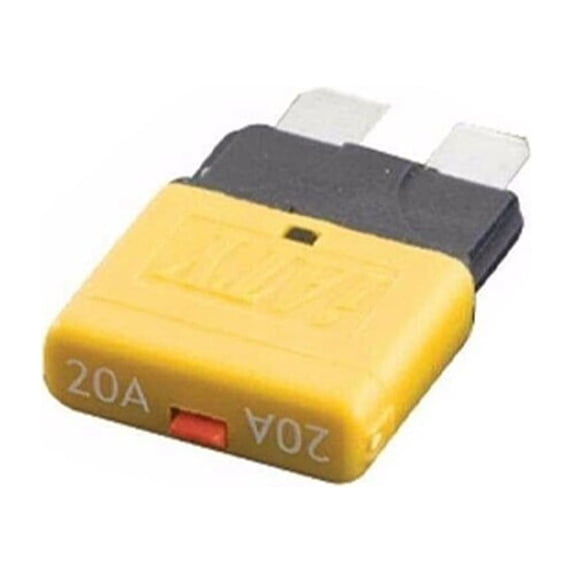

Yannee 1 Pcs Circuit Breaker Blade Fuse 12V 24V Resettable 5-30A Marine Automatic Reset

Description:

Car fuse ATC automatic/manual reset circuit breaker (thin type) 12/24V, RVs, boat

Automatic reset, start after cooling down, you no longer need to replace the blown fuse.

ATC circuit breaker (thin type)

Compatible with ATC (standard) fuse box

Ignition protection in accordance with SAE J553 and SAE J1171

Thermal circuit breaker, standard size blade, suitable for standard car blade fuse box. Suitable for automotive, marine and racing applications

Specification:

Voltage: Suitable for 12 and 24V applications, up to 28VDC

Rated current: 5A/7.5A/10A/15A/20A/25A/30A (optional)

Reset type: automatic reset

Operating temperature: -40oC (-40oF) to 85oC (185oF)

Dimensions Length: 19.7 Width: 6.2 Height: 29.5 Unit: mm

Weight: 5 grams

Standard: RoHS SAEJ 553; SAEJ 1171 (ignition protection); UL1500

Termination: 5.2mm wide blade (ATC type)

Storage temperature: -40oC (-40oF) to 125oC (260oF)

The package includes:

1 x circuit breaker fuse

Note:

Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

Manual measurement, please allow 1-10mm error. Thanks for your understanding.
