PRODUCT SPECIFICATIONS
Part #: 0000-109020

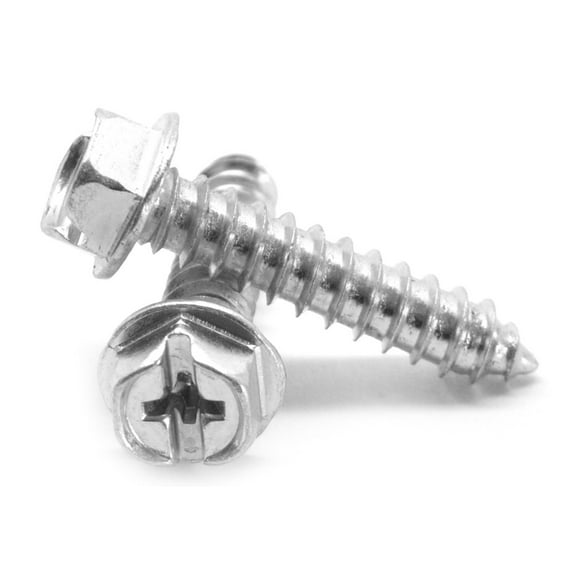

Fastener Type: Sheet Metal Screw Hex Washer Head Phillips/Slotted Combo Type AB
Size Description: #12-14 x 1"
Diameter/Nominal Size: #12
Length: 1"
Thread Pitch: 14
Thread Direction: Right
System of Measurement: Inch
Material: Low Carbon Steel
Finish: Zinc Plated
Head Type: Hex Washer
Drive Type: External Hex / Phillips / Slotted Combo
Screw Type: AB
Average Piece Weight: 0.0107000 lbs.
Sheet metal screws, otherwise known as tapping or self-tapping screws are designed for connecting thinner metal objects to one another or connecting metal to wood, plastic, and other materials; sharp threads draw material together and ensure a secure hold. Sheet metal screws (or SMS?s) are made from hardened steel so that the threads create their own mating thread in pre-drilled holes. Sheet metal screws can also be used in other materials, such as wood. Sheet metal screws come in different types. Type A has a coarse thread and sharp point. Type B has a fine thread and a blunt point. Type AB combines the two, with a fine thread and a sharp point.
Please see the specifications table for full details. If your requirements include specific dimensions, please contact us.
PICTURES ARE REPRESENTATIVE OF ITEM, BUT ARE NOT OF THE ACTUAL ITEM. Product dimensions, finish, head markings, thread length, stamping shape or forging shape, etc., may differ from picture. Products are guaranteed to meet the specifications to which they are manufactured. Specifications allow for tolerances in dimension and shape, which can vary from lot to lot.
