Hero image 0 of Intermatic Electromechanical Timer,24-Hour,SPDT MIL72ASTUZH-24, 0 of 2

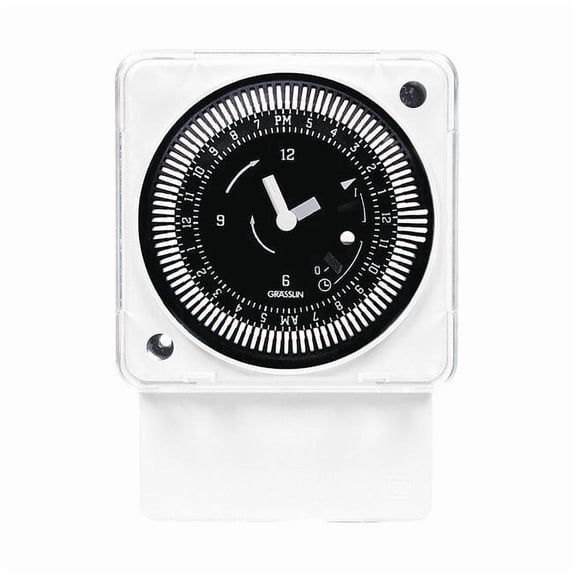

Intermatic Electromechanical Timer,24-Hour,SPDT MIL72ASTUZH-24

(No ratings yet)

Key item features

Contact Form:SPDT
Contact HP @ 120V:1 hp
Contact HP @ 240V:2 hp
Has Captive Trippers CVL:Yes
Has Captive Trippers:Yes
Has Finger Safe Terminals CVL:Yes
Has Finger-Safe Terminals:Yes
Has Override Switch CVL:Yes
Has Override Switch:Yes
Has Realtime Clock Face CVL:Yes
Has Real-time Clock Face:Yes
Height:4 19/32 in
Horsepower @ 120V - Maximum:1 hp
Horsepower @ 240V - Maximum:2 hp
Indoor/Outdoor Usage:Outdoor
Input Voltage Range(s):24 VAC, 60 Hz
Input Voltage Ranges:24 VAC, 60 Hz
Item:Electromechanical Timer
Mechanism Type:Analog/Mechanical
Min. Time Setting:15 min
Minimum Cycle Time:15 min
Motor Load Ratings Ranges:1 HP, 120 VAC; 2 HP, 250 VAC
Motor Load Ratings:1 HP, 120 VAC; 2 HP, 250 VAC
Mount:Surface/DIN Rail
Mounting Options:Surface; DIN
Mounting Style:DIN Rail and Surface
NEMA Enclosure Rating:No Enclosure
NEMA Rating:3R
Nominal Max. Time Setting:24 hr
Series:MIL72
Shortest Switching Time:ON/OFF 15 minutes
Solutions:Refrigeration; Ventilation; Water Treatment; Generator Exercising

Specs

Rec location
Outdoor
Light timer type
Mechanical Light Timer
Brand
Intermatic
Time period
24 h
Amps
21 Amps
Volts
24 VAC

Current price is Now $87.00

You save $31.99

was $118.99

Price when purchased online

Free shipping
Free 30-day returns

Walmart Protection Plan by Allstate

(Only one option can be selected at a time)

2-Year Plan - $9.00

3-Year Plan - $13.00

How do you want your item?

Ships to

Arrives by Sat, May 23

Sold and shipped by Begench Igdyrov

4.8 stars out of 5, based on 5 seller reviews(4.8)

Report an issue with this seller

Free 30-day returns

Other sellers

$127.58

+Free shipping

Shipping, arrives by Thu, May 21 to Columbus, 43215

Sold and shipped by Voomi Supply

Free 30-day returns

About this item

Product details

Electromechanical Timer, 24-Hour, Number of Poles 1, Contact Form SPDT, Voltage 24V AC, Amps 21 A, Contact HP @ 120V 1 hp, Contact HP @ 240V 2 hp, Day Skipper No, Enclosure Type Plastic, Min. Time Setting 15 min, Max. Time Setting 23 hr 45 min, Max. On/Off Cycles 48, Width 3 5/16 in, Depth 3 5/16 in, Height 4 19/32 in, Number of Trippers Included 96, Operating Temp. -40 Degrees to 185 Degrees F, Description/Special Features Override Switch, Synchronous Motor, Mount Surface/DIN Rail

Contact Form:SPDT
Contact HP @ 120V:1 hp
Contact HP @ 240V:2 hp
Has Captive Trippers CVL:Yes
Has Captive Trippers:Yes
Has Finger Safe Terminals CVL:Yes
Has Finger-Safe Terminals:Yes
Has Override Switch CVL:Yes
Has Override Switch:Yes
Has Realtime Clock Face CVL:Yes
Has Real-time Clock Face:Yes
Height:4 19/32 in
Horsepower @ 120V - Maximum:1 hp
Horsepower @ 240V - Maximum:2 hp
Indoor/Outdoor Usage:Outdoor
Input Voltage Range(s):24 VAC, 60 Hz
Input Voltage Ranges:24 VAC, 60 Hz
Item:Electromechanical Timer
Mechanism Type:Analog/Mechanical
Min. Time Setting:15 min
Minimum Cycle Time:15 min
Motor Load Ratings Ranges:1 HP, 120 VAC; 2 HP, 250 VAC
Motor Load Ratings:1 HP, 120 VAC; 2 HP, 250 VAC
Mount:Surface/DIN Rail
Mounting Options:Surface; DIN
Mounting Style:DIN Rail and Surface
NEMA Enclosure Rating:No Enclosure
NEMA Rating:3R
Nominal Max. Time Setting:24 hr
Series:MIL72
Shortest Switching Time:ON/OFF 15 minutes
Solutions:Refrigeration; Ventilation; Water Treatment; Generator Exercising
