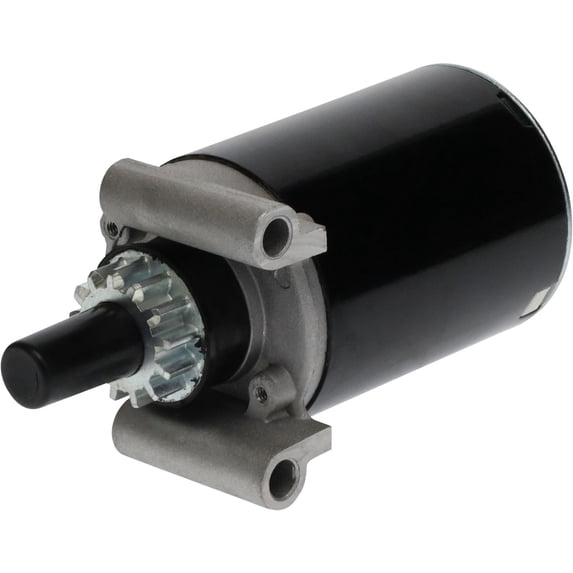

New Starter Motor Fits John Deere Applications W/Kohler Engine Replaces Am131083

(No ratings yet)

Key item features

Rareelectrical Compatible With John Deere, Kohler
Cub Cadet Applications: • Cub Cadet 1340 Garden Tractor Kohler 12.5Hp Gas (1990-1991) • Cub Cadet 1315 Lawn Tractor Kohler 12.5Hp Gas (1989-1991) • Cub Cadet 1320 Lawn Tractor Kohler 12.5Hp Gas (1989-1991) • Cub Cadet 1325 Lawn Tractor Kohler 12.5Hp Gas (1992-1993) • Cub Cadet 1330 Lawn Tractor Kohler 12.5Hp Gas (1992-1993) • Cub Cadet 1405 Lawn Tractor Kohler 14Hp Gas (1990-1991) Toro Applications: • Toro 264-6 Yard Tractor Kohler 14Hp (1994-1996) • Toro 264-H Yard Tractor Kohler 14Hp (1994-1996) • Toro 312-8 Garden Tractor Kohler 12.5Hp (1998-2001) • Toro 314-8 Garden Tractor Kohler 14Hp (1999-2001) • Toro 315-8 Garden Tractor Kohler 15Hp (2002-2004) • Toro Gt Classic Garden Tractor Kohler 426Cc (2005-2007) • Toro Pro-Line Walk-Behind Mower 30187 (All Years) • Toro Pro-Line Walk-Behind Mower 30299 (All Years) Lincoln Welder Applications: • Lincoln Welder Kohler Ch15 15.0Hp Engine Kohler Engine Applications: • Kohler Command Ch11 Horizontal Single Cylinder 11Hp • Kohler Command Ch12.5 Horizontal Single Cylinder 12.5Hp • Kohler Command Ch13 Horizontal Single Cylinder 13Hp • Kohler Command Ch14 Horizontal Single Cylinder 14Hp • Kohler Command Ch15 Horizontal Single Cylinder 15Hp • Kohler Command Ch410 Horizontal Single Cylinder • Kohler Command Ch430 Horizontal Single Cylinder • Kohler Command Ch450 Horizontal Single Cylinder • Kohler Command Cv12.5 Vertical Single Cylinder 12.5Hp • Kohler Command Cv14 Vertical Single Cylinder 14Hp • Kohler Command Cv15 Vertical Single Cylinder 15Hp • Kohler Command Cv460 Vertical Single Cylinder Fitment Notes: • Pmdd (Permanent Magnet Direct Drive) Starter • 88Mm Field Housing Length (Shorter Housing Variant) • Primarily Fits Kohler Horizontal Shaft (Ch Series) Engines • Also Fits Select Vertical Shaft (Cv12.5, Cv14, Cv15, Cv460) Engines • Verify Kohler Engine Model, Spec, And Serial Number Before Ordering
Oem Part Numbers: • Kohler: 12-098-21-S / 12-098-21 (Current Part Number) • Kohler: 12-098-19-S (Superseded By 12-098-21-S) • Kohler: 12-098-14-S / 12-098-14 (Superseded By 12-098-21-S) • Kohler: 12-098-12-S / 12-098-12 • Kohler: 12-098-09-S / 12-098-09 • Kohler: 12-098-06-S / 12-098-06 • Kohler: 12-098-05-S / 12-098-05 • United Technologies: 5239740-M030sm / Sm52397 • United Technologies: 5278440-M030sm / Sm52784 • United Technologies: 5667040-M030sm / Sm56670 Specifications: • Voltage: 12V Dc • Starter Type: Pmdd (Permanent Magnet Direct Drive) • Rotation: Ccw (Counterclockwise) • Tooth Count: 13 • Gear Od: 38.3Mm / 1.508" • Overall Length: 198Mm / 7.8" • Od Housing: 78.4Mm / 3-1/16" • Mounting Ears: (2) 8.0Mm Id Unthreaded • Mounting Hole Distance: 66Mm / 2.6" • Field Housing Length: 88Mm • Terminal: 1 (Battery Terminal On Ce Plate) • Weight: 5.1 Lbs / 2.32 Kg • Condition: New Supersession Chain: • 12-098-05 → 12-098-12-S → 12-098-14-S → 12-098-19-S → 12-098-21-S (Current) Engine Application: • Kohler Command Ch11-Ch15, Ch410-Ch450 (Horizontal) 9-15 Hp • Kohler Command Cv12.5, Cv14, Cv15, Cv460 (Vertical) 12.5-15 Hp
Source: Aftermarket
One Year Manufacturer's Warranty.

Specs

Manufacturer part number
AM131083
Vehicle make
John Deere
Brand
Rareelectrical
Vehicle fitment type
Specific
Volts
12 V
Weight
7 lb

Current price is $72.05

Price when purchased online

Free shipping
Free 30-day returns

Walmart Protection Plan by Allstate

(Only one option can be selected at a time)

3-Year Plan - $12.00

2-Year Plan - $8.00

How do you want your item?

Ships to

Arrives by Tue, May 19

Sold and shipped by Rareelectrical

4.429872495446266 stars out of 5, based on 549 seller reviews(4.4)

Report an issue with this seller

Free 30-day returns

About this item

Product details

12V Starter Motor - Kohler Command CH11 CH12.5 CH13 CH14 CH15 CH410 CH430 CH450 Engines
Premium replacement starter for Kohler Command horizontal single cylinder engines. PMDD type, 13-tooth drive gear, counterclockwise rotation, 12V DC. Two 8.0mm unthreaded mounting ears, 66mm mounting hole distance. Battery terminal on CE plate, 88mm field housing length. Fits Cub Cadet and Toro lawn and garden equipment. Replaces Kohler 12-098-21-S, 12-098-19-S, 12-098-14, 12-098-12, 12-098-09, 12-098-06, 12-098-05 and United Technologies 5239740-M030SM, 5278440-M030SM, 5667040-M030SM.

OEM PART NUMBERS:
• Kohler: 12-098-21-S, 12-098-21, 12-098-19-S, 12-098-14-S, 12-098-14
• Kohler: 12-098-12-S, 12-098-12, 12-098-09-S, 12-098-09
• Kohler: 12-098-06-S, 12-098-06, 12-098-05-S, 12-098-05
• United Technologies: 5239740-M030SM, 5278440-M030SM, 5667040-M030SM
• United Technologies: SM52397, SM52784, SM56670

SPECIFICATIONS:
• Voltage: 12V DC
• Starter Type: PMDD (Permanent Magnet Direct Drive)
• Rotation: CCW (Counterclockwise)
• Tooth Count: 13
• Gear OD: 38.3mm / 1.508"
• Overall Length: 198mm / 7.8"
• OD Housing: 78.4mm / 3-1/16"
• Mounting Ears: (2) 8.0mm ID Unthreaded
• Mounting Hole Distance: 66mm / 2.6"
• Field Housing Length: 88mm
• Terminal: 1 (Battery Terminal on CE Plate)
• Weight: 5.1 lbs / 2.32 kg
• Condition: New

APPLICATIONS:
• Kohler Command: CH11, CH12.5, CH13, CH14, CH15, CH410, CH430, CH450
• Kohler Command: CV12.5, CV14, CV15, CV460
• Cub Cadet 1315/1320/1325/1330/1340/1405 (1989-1993)
• Toro 264-6/264-H/312-8/314-8/315-8/GT Classic (1994-2007)

⚠️ Verify OEM part number from your original unit before ordering to ensure proper fitment.

Rareelectrical Compatible With John Deere, Kohler
Cub Cadet Applications: • Cub Cadet 1340 Garden Tractor Kohler 12.5Hp Gas (1990-1991) • Cub Cadet 1315 Lawn Tractor Kohler 12.5Hp Gas (1989-1991) • Cub Cadet 1320 Lawn Tractor Kohler 12.5Hp Gas (1989-1991) • Cub Cadet 1325 Lawn Tractor Kohler 12.5Hp Gas (1992-1993) • Cub Cadet 1330 Lawn Tractor Kohler 12.5Hp Gas (1992-1993) • Cub Cadet 1405 Lawn Tractor Kohler 14Hp Gas (1990-1991) Toro Applications: • Toro 264-6 Yard Tractor Kohler 14Hp (1994-1996) • Toro 264-H Yard Tractor Kohler 14Hp (1994-1996) • Toro 312-8 Garden Tractor Kohler 12.5Hp (1998-2001) • Toro 314-8 Garden Tractor Kohler 14Hp (1999-2001) • Toro 315-8 Garden Tractor Kohler 15Hp (2002-2004) • Toro Gt Classic Garden Tractor Kohler 426Cc (2005-2007) • Toro Pro-Line Walk-Behind Mower 30187 (All Years) • Toro Pro-Line Walk-Behind Mower 30299 (All Years) Lincoln Welder Applications: • Lincoln Welder Kohler Ch15 15.0Hp Engine Kohler Engine Applications: • Kohler Command Ch11 Horizontal Single Cylinder 11Hp • Kohler Command Ch12.5 Horizontal Single Cylinder 12.5Hp • Kohler Command Ch13 Horizontal Single Cylinder 13Hp • Kohler Command Ch14 Horizontal Single Cylinder 14Hp • Kohler Command Ch15 Horizontal Single Cylinder 15Hp • Kohler Command Ch410 Horizontal Single Cylinder • Kohler Command Ch430 Horizontal Single Cylinder • Kohler Command Ch450 Horizontal Single Cylinder • Kohler Command Cv12.5 Vertical Single Cylinder 12.5Hp • Kohler Command Cv14 Vertical Single Cylinder 14Hp • Kohler Command Cv15 Vertical Single Cylinder 15Hp • Kohler Command Cv460 Vertical Single Cylinder Fitment Notes: • Pmdd (Permanent Magnet Direct Drive) Starter • 88Mm Field Housing Length (Shorter Housing Variant) • Primarily Fits Kohler Horizontal Shaft (Ch Series) Engines • Also Fits Select Vertical Shaft (Cv12.5, Cv14, Cv15, Cv460) Engines • Verify Kohler Engine Model, Spec, And Serial Number Before Ordering
Oem Part Numbers: • Kohler: 12-098-21-S / 12-098-21 (Current Part Number) • Kohler: 12-098-19-S (Superseded By 12-098-21-S) • Kohler: 12-098-14-S / 12-098-14 (Superseded By 12-098-21-S) • Kohler: 12-098-12-S / 12-098-12 • Kohler: 12-098-09-S / 12-098-09 • Kohler: 12-098-06-S / 12-098-06 • Kohler: 12-098-05-S / 12-098-05 • United Technologies: 5239740-M030sm / Sm52397 • United Technologies: 5278440-M030sm / Sm52784 • United Technologies: 5667040-M030sm / Sm56670 Specifications: • Voltage: 12V Dc • Starter Type: Pmdd (Permanent Magnet Direct Drive) • Rotation: Ccw (Counterclockwise) • Tooth Count: 13 • Gear Od: 38.3Mm / 1.508" • Overall Length: 198Mm / 7.8" • Od Housing: 78.4Mm / 3-1/16" • Mounting Ears: (2) 8.0Mm Id Unthreaded • Mounting Hole Distance: 66Mm / 2.6" • Field Housing Length: 88Mm • Terminal: 1 (Battery Terminal On Ce Plate) • Weight: 5.1 Lbs / 2.32 Kg • Condition: New Supersession Chain: • 12-098-05 → 12-098-12-S → 12-098-14-S → 12-098-19-S → 12-098-21-S (Current) Engine Application: • Kohler Command Ch11-Ch15, Ch410-Ch450 (Horizontal) 9-15 Hp • Kohler Command Cv12.5, Cv14, Cv15, Cv460 (Vertical) 12.5-15 Hp
Source: Aftermarket
One Year Manufacturer's Warranty.
