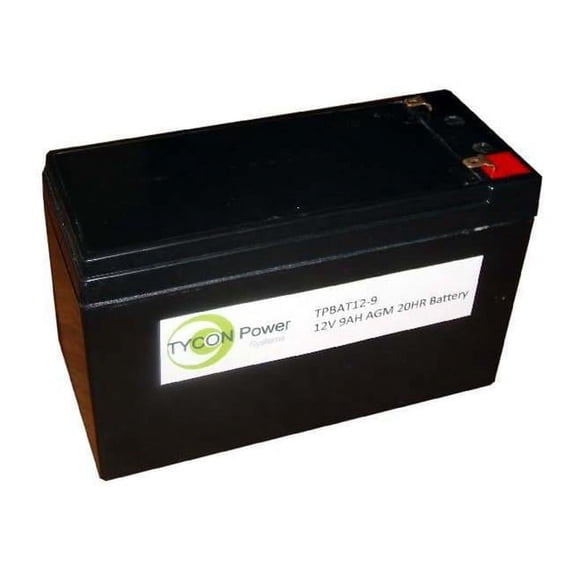

Tycon Systems TPBAT12-9 12V- 9Ah Valve Regulated Sealed Battery

The TPBAT series of high rate valve regulated sealed lead acid (VRLA) batteries have been developed for long term operation in harsh environments. The small TPBAT12-9 battery uses absorbent glass mat (AGM) technology which provides for unsurpassed reliability over wide temperature ranges. The TPBAT12-50/100 batteries use gelled electrolyte technology which provides for the longest battery life for applications like solar powered systems requiring numerous deep discharges. The batteries can be installed in any position without affecting their performance or reliability.

• Sealed and maintenance free
• Safety valve for ultimate safety; prevents overpressure
• Exceptional deep discharge recovery performance
• Low self discharge characteristics
• Highly resistant to vibration and shock

• Voltage - 12V
• Capacity (amp hours; 20hr) - 9ah
• Float Life - 5 Years
• Type / Technology - Valve Regulated Sealed Lead Acid /Absorbent Glass Mat (AGM)
• Capacity vs Temperature - 40°C=102%; 0°C=85%, -15°C=65%
• Self Discharge (25°C) - <3% per month
• Charge Voltage (-30mV / °C) - 14.4 to15V ; Max Current 2.7A
• Float Voltage (-20mV / °C) - 13.6 to 13.8V
• Operating Temperature - 40C (-40F) to +60C (140F)
• Housing - ABS (UL94HB)
• Size - 5.94 x 2.56 x 3.9
