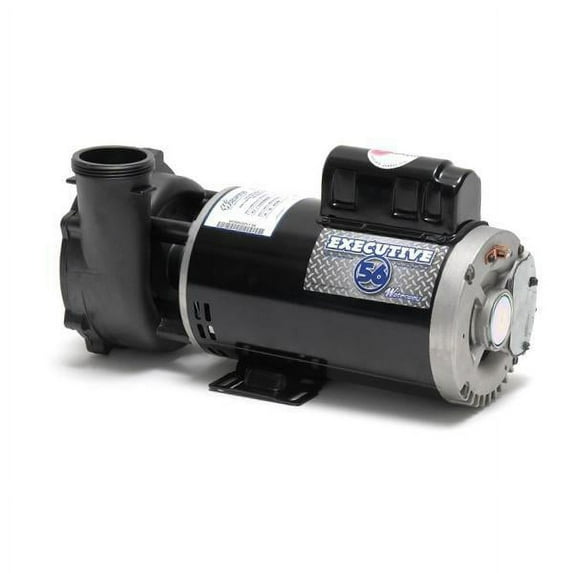

Pump, WW Exec, 5.0hp, 230v, 2-Speed, 56fr, 2-1/2" x 2", OEM

The Executive 56 Frame Spa Pump has an executive wet end designed for 56-Frame motors along with two double-shielded ball bearings with moisture-resistant grease for quieter operation and long life. The dual speed motors have insulated windings for increased efficiency and large, highly versatile 6-1/2" diameter wet end for higher head pressure. A split capacitor (start and run) allows for less energy consumption.

SPA PUMP FEATURES:

• Executive wet end designed specifically for 56-frame motors.
• 56-frame motor for added strength, cooler operating temperature, and longer motor life.
• Large 6-1/2" diameter wet end for higher head pressure.
• 2-1/2" intake for improved flow performance and reduced noise.
• Wet end can be rotated for easy installation.
• 2 double shielded ball bearings with moisture resistant grease for quieter operation & longer life.
• 2 speed motors have four sets of insulated windings for increased efficiency.
• Dim (H x W x L): 9.08" x 8.05" x 14.775".
• 5Hp Dual Speed Pump.
• California Title 20 Compliant.

Product Specifications:

• Speed: 2 Speed
• Motor Voltage: 230v
• Drain Plug Location: 3,6,9 o`clock
• Pump to Motor Foot Types: 4a
• Suction Style: Center
• Suction Connection (Physical Dim): 3-11/16"od mbt
• Suction Pipe Size: 2-1/2"
• Discharge Style: Side
• Discharge Connection (Physical Dim): 3-1/16"od mbt
• Discharge Pipe Size: 2"
• Horsepower: 5.0hp
• Motor Frame: 56 Frame Thru-Bolt
• Motor Amp/Wattage: 16.4A/4.8A
• Manufacturer Impeller Number: 310-4180
• Volute Fastening Type: 8 Screws
• Volute/Sealplate Number: 315-1240
• Manufacturer Wet End Number: 310-1510
