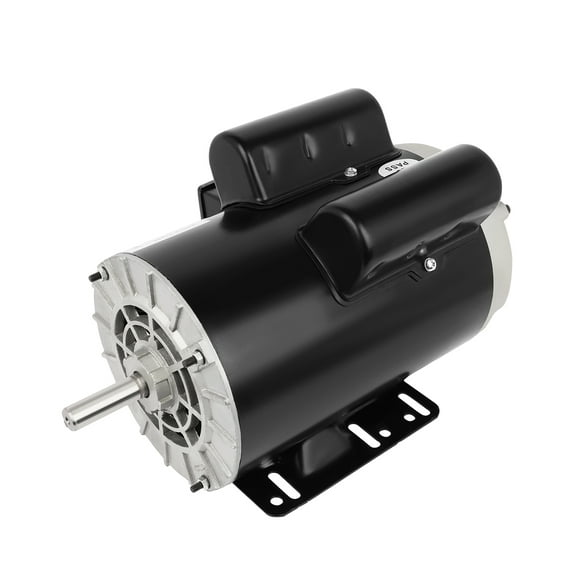

Electric Motor 5HP 3450 RPM General Purpose Single Phase Motor 208V-230V 5/8" Shaft Diameter Rolled Steel Shell 60 HZ ODP CW/CCW

(No ratings yet)

Key item features

- General Purpose Single Phase Motor: HP - 5, POLE - 2, FRAME - 56, ENC - ODP, HZ: 60Hz, Voltage: 208-230V, AMP: 22.0-21.0A, RPM: 3450, IP - 23
- Security Persistent: INS - F, Shaft diameter - 5/8",Shaft length - 1.88", Rotation - CW/CCW
- Open drip-proof is better used in environment that are relatively clean and dry environments
- Housing Material: Rolled steel shell. Adopt S1 continuous working system, safe and durable, long service life
- Widely Application: 5HP general purpose motor is suitable for general equipment. Please purchase motor according to the specific needs of the parameters, you can send an email for detailed inquiry at any time

Specs

Horsepower
5 HP
Electric motor type
AC Motor
Electrical phase
Single Phase
Volts
230 V
Maximum motor speed
3450 rpm
Amps
21 Amps

Current price is $179.99

Price when purchased online

Free shipping
Free 90-day returns

How do you want your item?

I want delivery savings with

Try 30 days for just $1! Choose a plan at checkout.

How do you want your item?

Ships to

Arrives by Fri, May 29

Sold by GYZJ

Fulfilled by Walmart

4.39344262295082 stars out of 5, based on 61 seller reviews(4.4)

Report an issue with this seller

Free 90-day returns

Try 30 days of Walmart+ for just $1!

T&C apply.

About this item

Product details

Specification
HP: 5
Pole: 2
HZ: 60HZ
Protector: Non
Speed: 3450RPM
Volts: 208-230 V
AMPS: 22.0-21.0 A
Shaft diameter: 5/8"
Shaft length: 1.88"
Net weight: 45.30 lb
Gross weight: 51.37 lb
Phase:Single Phase
Rotation: CW/CCW
Housing material: Rolled steel shell
Package Size: 400*270*270mm

Package Including
1 x General Purpose Single Phase Motor

- General Purpose Single Phase Motor: HP - 5, POLE - 2, FRAME - 56, ENC - ODP, HZ: 60Hz, Voltage: 208-230V, AMP: 22.0-21.0A, RPM: 3450, IP - 23
- Security Persistent: INS - F, Shaft diameter - 5/8",Shaft length - 1.88", Rotation - CW/CCW
- Open drip-proof is better used in environment that are relatively clean and dry environments
- Housing Material: Rolled steel shell. Adopt S1 continuous working system, safe and durable, long service life
- Widely Application: 5HP general purpose motor is suitable for general equipment. Please purchase motor according to the specific needs of the parameters, you can send an email for detailed inquiry at any time
