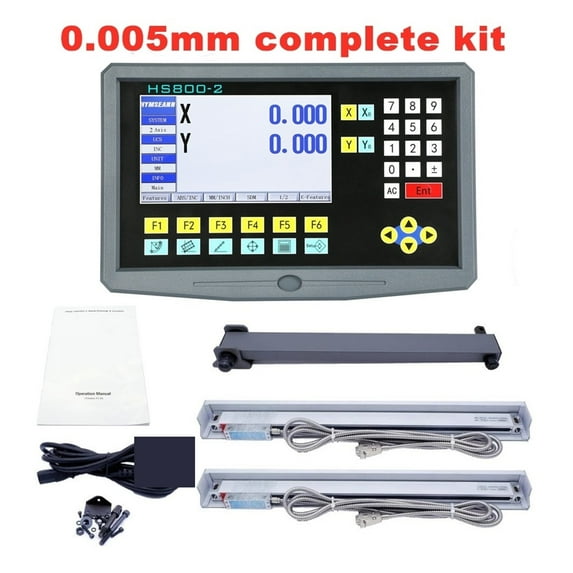

Multilingual 2 Axis LCD Kit HS800-2 Turning Lathe Milling Digital Readout Linear Glass Scale Encoder Grating Ruler ,Convenient for Operation

Multilingual 2 Axis LCD Kit HS800-2 Turning Lathe Milling Digital Readout & Linear Glass Scale Encoder Grating Ruler

This is set in 9 languages which is convenient for users in different countries easy to operate, and complete functions. Widely used in lathes, milling machines, grinders, wire cutting, drilling machines, etc.

Futures

The LCD accepts all Chinese optical linear glass scales and widely used for lathe, drilling, boring and milling machine.

It can exchange 9 languages by system in one, more functional for lathe & milling machine for the users from different countries

Parameter

Model HS800-2

Input signal: TTL

Specifications

The HS800-2 offers a high performance universal console with Milling, Lathe and Grinding functions.

This 2 axis model allow up to 2 linear encoders to be connected. Additional interfaces are available to combine axis or convert the input to suit other manufacturers equipment.

Durable front panel membrane with tactile switches and robust die cast housing.

Large easy to read LCD

Functions include; PCD, line of holes, 200 zero memory, radius/diameter tool offsets.

Basic Functions

200 Points Auxiliary Zero Position Function

Mid-split Function

"mm/inch" Conversion

Radius/Diameter Switch

Segmented Error Compensation

Linear Error Compensation

Power Interruption Memory

Sleep Switch

Mathematics calculation

RS-232-C ineterface (option)

Machining Functions

PCD circumferential division (Applicable to milling machine and spark tester)

Involute chamber machining function (Applicable to milling machine)

Bevel machining/Angular Surface Processing (Applicable to milling machine)

N3 function (Applicable to milling machine)

Diagonal boring (Applicable to milling machine)

R-arc function (Applicable to milling machine)

Taper measuring function (Applicable to lathe)

200-tool library (Applicable to lathe)

Anti-dithering function (Applicable to grinding machine)

Futures

Product name: Linear scale

Resolution: 0.005mm

Travel length: 50mm-1000mm

Actrual length: Travel + 141mm

Accuracy: +/-10umm

Ouput: TTL

Input voltage: 5VDC

Grating steps: 20um

Connector type: DB9

Cable length: 3m
