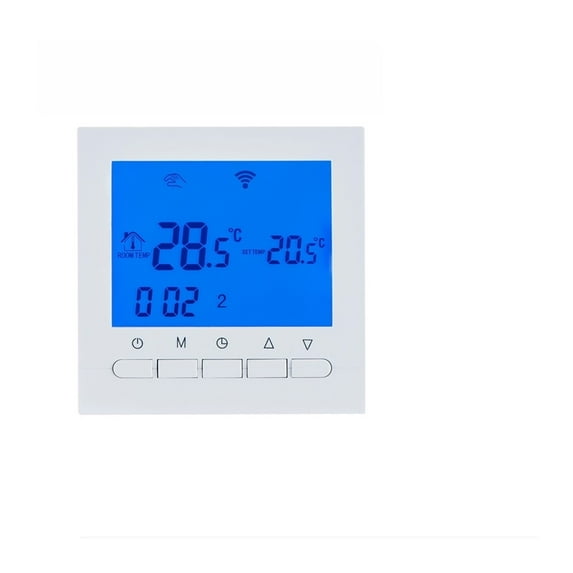

3A Gas Boiler Heating Wifi Thermostat APP Remote Controls Thermostats Regulator Blue Backlight Programmable ,Install Easy

3A Gas Boiler Heating Wifi Thermostat APP Remote Controls Thermostats Regulator Blue Backlight Programmable

Power Supply: 200~240,50~60

Current Load <= 3A

Power Consumption < 0.3W

Set Temp. : 5~99 Celsius (factory default: 5~35 Celsius)

Accuracy: +/-0.5 Celsius

Dimension: 86X86X40mm

Usage: 313 wifi series thermostat could be used to control both gas boiler and thermal actuator. This thermostat will fit you if your house uses water heating system.

Wifi controls: Control heating equipments via phone. You could set your house's temperature anywhere you are.

Green products & energy saving Set in programmable mode saving energy when you are not home

Features and Functions

Wifi connection can be controlled by app from anywhere BOT313WIFI-WH)

- 5+2/6+1/7 days week program function for chice. (For example, 5 in the 5 + 2 mode represents Monday to Friday, and you can set 6 time periods; 2 stands for Saturday and Sunday. You can set 2 time periods. Please note that it can't program daily.)

- Manual mode and auto mode selectable.

- With child lock function, prevent children from accidentally touching.

- Anti-freeze function, prevent loss caused by low temperature.

- Power memory function, save the original settings after power off.

Tip 1:Long press 1 to enter week programming setting interface; Long press 2 to enter the advanced settings interface.

Tip 2:The programming time needs to be set in the range of 00:00 to 23:59 from small to large, incorrect settings will cause temperature disturbances.

Screen Explanation

Thermostat Display

Thermostat Size

86*86*40mm

Thermostat Wiring Diagram

Please connect L and N to 220 voltage power, 5 and 6 to your gas boiler. 1 and 2 are for thermal actuators, please do not connect them to your gas boiler.

Remarks: please read wiring diagram carefully before connecting. If you connect it wrongly, there will be a short circuit. Your gas boiler board will be damaged!!!
