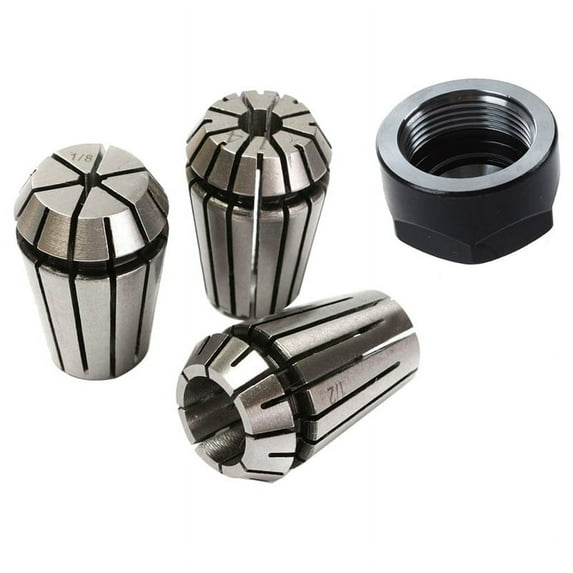

1x ER20 Collet Clamping Nuts for CNC Milling Chuck Holder Lathe & 3Pcs ER20 Spring Collet Chuck Lathe Milling

set2: 3 x ER20 Spring Collet + 1 x Collet Nuts
Product Name : Collet Nuts;Model : ER20
Hole Diameter : 16mm/ 0.6 inch;Thread Diameter : 25mm/1 inch
Overall Size(Approx.) : 34 x 20mm/ 1.3 inch x 0.8 inch (D x L)
Product selection of materials, high-quality spring steel! long lasting
Wide range of applications, for example, boring, milling, drilling, tapping,
engraving, CNC, and other processing.
Suitable For: Boring, milling, drilling, tapping, engraving, CNC, spindle machines, and other processing
This collet nut is a great replacement for the broken part, fit most tool holders.
Precision ground and hardened.
This listing is only for 1 collet nut.
Specifications
Material: Spring steel/Metal
Color: silver gray/Black
Size
1/8:0.3cm
1/4:0.6cm
1/2:1.2cm
How to use
Insert the tip into the pressure cap, gently turn the retainer until the pressure cap eccentric retainer portion
recessed groove along the direction of the arrow evenly push hard retainer, you can mount the internal pressure cap.
The pressure cap with retainer mounted together on a spindle or chuck body, the cylindrical tool shank after
wiping loaded clamping hole, use a wrench to tighten the pressure cap even force until the date before the tool folder in prison use.
(Note: not in the tool and avoid tightening pressure cap installed to avoid damage to the retainer)
with a wrench loosen pressure cap out of the chuck and the tool, remove the tool, retainer direction of the arrow
push hard to quit, and then need to put on retainer to the other aperture.

Package Contents:
3 x ER20 Spring Collet
1 x Collet Nuts
Only the above package content, other products are not included.
Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
