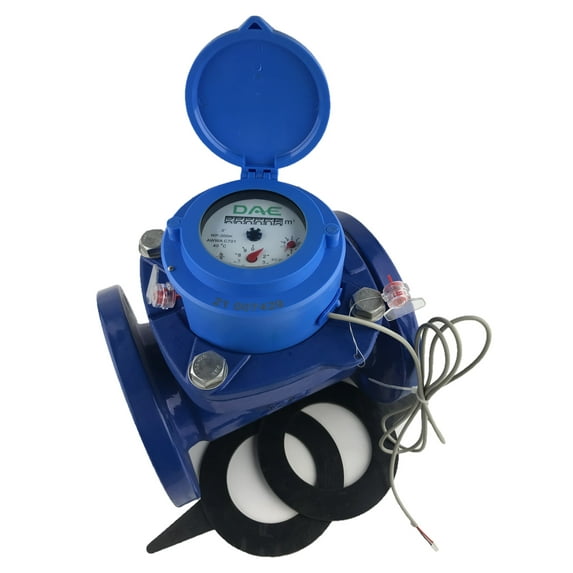

DAE WP-300m 3" Woltmann Helix Water Meter, Pulse Output, Cubic meter

3 inch Woltmann Helix Water Meter with Pulse Output, Measured in Cubic meter. Connection: ASME Class 125 Flanges per B16.1. Sealed Dry Dial for Clear Readings. Meter must be installed with direction of flow as indicated by arrow cast into the meter body. Install valve before inlet of meter. A valve at outlet is also recommended. Install meter in a location with at least 10 diameters of straight pipe at the inlet and 5 diameters at the outlet to assure proper flow profile to meter. Unit: Cubic meter. Accuracy: ±2% as per AWWA C701 test procedure. Pulse Output: 0.1 cu m per pulse, a dry contact (i.e. no voltage) reed switch with 2 wires, 1.5m. The third party system should not generate electricity more than 0.01A (typically 0.005A like DAE AMR), 24VAC/DC. Meter Body: Cast iron, epoxy coated. Item dimension: 8.86 inch length, 7.5 inch Width, 10.9 inch height. Weight: 32 lbs. Max. Reading: 999,999.999 Cu meter, Min. Reading 0.001 Cu meter. The 1st digit from the right is in Cu meter. For example, if you see 001234 on the register, it is 1234 Cu meter. Reading on 4th picture of the listing is 2.612 Cu meter. The max. working pressure is 232 psi, exceeding AWWA standard 150 psi. Max temperature: 104F (40C). Pressure Drop: 0.98 psi at 240 GPM (54.48 m³/h). Conforms to AWWA C701 and ISO 4064, for City water only. The meter register assembly can be removed for repair or replacement without disrupting the process flow. Operate at low pressure loss and offer excellent accuracy. Maximum Flow Rate: 350 GPM (79.45 m³/h), Nominal Flow Rate: 240 GPM (54.48 m³/h), Minimum Flow Rate: 8 GPM (1.816 m³/h). For the buyers outside of USA, in addition to the tax, the carriers may charge brokerage fee.
