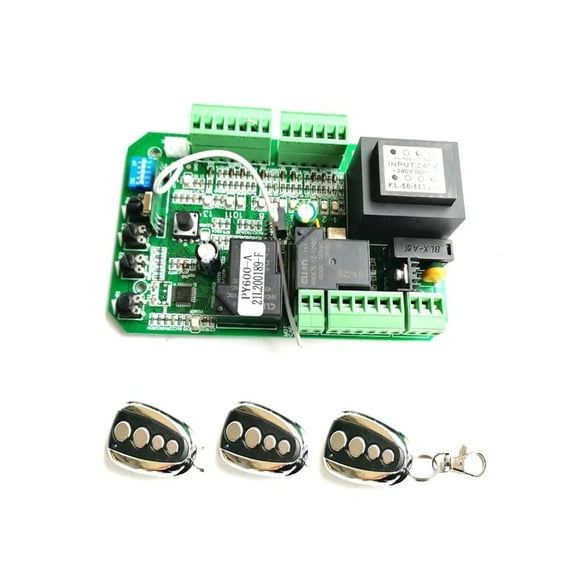

Gate Motor Controller Circuit Board Electronic Card For Sliding Gate Opener Soft Start Function Pedestrian Mode 110V Or 220V ,Stable And Sturdy
Gate Motor Controller Circuit Board Electronic Card For Sliding Gate Opener Soft Start Function Pedestrian Mode 110V Or 220V ,Stable And Sturdy
Hero image 0 of Gate Motor Controller Circuit Board Electronic Card For Sliding Gate Opener Soft Start Function Pedestrian Mode 110V Or 220V ,Stable And Sturdy, 0 of 6
Sunviva

Gate Motor Controller Circuit Board Electronic Card For Sliding Gate Opener Soft Start Function Pedestrian Mode 110V Or 220V ,Stable And Sturdy

(No ratings yet)
Gate Motor Controller Circuit Board Electronic Card For Sliding Gate Opener Soft Start Function Pedestrian Mode 110V Or 220V ,Stable And SturdyGate Motor Controller Circuit Board Electronic Card For Sliding Gate Opener Soft Start Function Pedestrian Mode 110V Or 220V Stable And SturdyGate Motor Controller Circuit Board Electronic Card For Sliding Gate Opener Soft Start Function Pedestrian Mode 110V Or 220V Stable And SturdyGate Motor Controller Circuit Board Electronic Card For Sliding Gate Opener Soft Start Function Pedestrian Mode 110V Or 220V Stable And SturdyGate Motor Controller Circuit Board Electronic Card For Sliding Gate Opener Soft Start Function Pedestrian Mode 110V Or 220V Stable And Sturdy
Accessories Included:7 remote control kit-Out of stock

Key item features

  • This control board is desinged for sliding gate motors, power input 110V or 220V, frequency is 433.92MHz.
  • Remote control Battery is
  • not included
  • .(12V,
  • 27A needed,
  • not 23A)
  • and this board is only for 110V or 220V AC motor, not for other voltages; IT IS NOT FOR SWING GATE OPENER.
  • the remote control chip must by HCS301, SN1646, rolling code; not compatible with other remote control;
  • manual is not coming with this product and please leave email and we will send manual by email;
  • Keypad / single button interface.
  • Have Infrared safety sensor interface
  • Soft start and soft stop function and the soft stop width are adjustable
  • Working time is adjustable.
  • Motor output torque is adjustable.
  • pedestrian mode;
  • User can select Auto-close function.
  • Each control board can learn 25 pieces of remote control.
  • Interface for single button / three button switch, infrared sensor, alarm light;
  • VR1 is to adjust the motor operation time; to turn it in clockwise will increase the running time; in reverse, it will decrease the motor operation time; Max is 90seconds and minimum is 10 seconds;
  • VR2 is to adjust the force when the motor is going to stop; clockwise direction for increase the force and counter-clockwise is to decrease the force;
  • VR3 is to adjust the operation distance for soft stop; the adjustment is the same with the above;
  • VR4 is to change the motor torque; clockwise direction will increase the torque output and the reverse direction will decrease the torque.
  • Related Products:dc motor,small dc motor,motors,hobby motor,mini dc motor,small electric motor,dc motor kit,electric actuator,linear actuator,linear motion actuators,waterproof linear actuator,electric cylinder,electric piston,furnace control circuit board
Current price is $158.93
Price when purchased online
Out of stock
