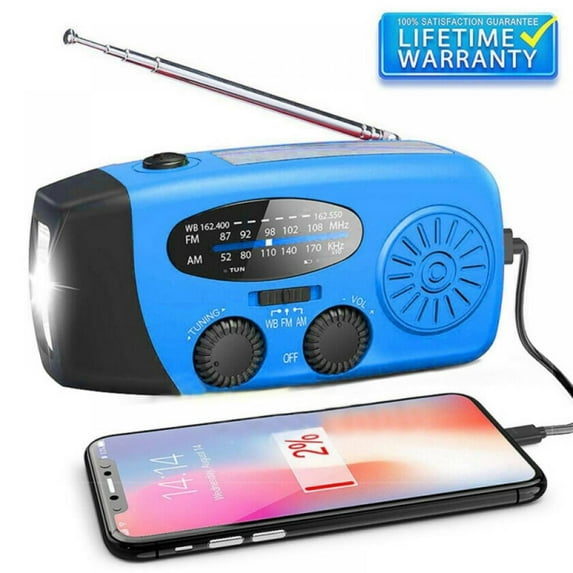

New Solar Emergency Radio 2000mAh- Hand Crank Radio - Weather Radio Led Flashlight Phone Charge

Description:

This Solar Hand Crank Self Powered Weather Radio also has functions of LED flashlight and power bank for Smart Phone. It supports not only Solar Powered but also supports USB Charged and Crank Dynamo, which brings great safety guarantee and convenience to people in outdoor occasions.

FEATURES:

3 super bright LED flashlight.

AM/FM/NOAA weather band radio,.

Recharge cell phone in emergency (USB DC 5V output, no need any cell phone adapters)

Multiple ways to power the radio flashlight:

a. Hand crank to wind up internal alternator

b. Solar power,

c. AC/DC adapter to recharge it.

d. connect the -micro USB port and computer with an USB to -Micro USB cable.

Headphone jack or audio output (optional)

Water-resistance, complies with CE, FCC.

SPECIFICATION:

* AM Radio: 520 ~ 1710 KHz

* FM Radio: 87 ~ 108 Mhz

* NOAA/Weather Band: 162.400 ~ 162.550 Mhz

* Working voltage: 2.7V ~ 4.2V

* Power source: 2000mAh/3.7V Ni-Mh

* 3-Brilliant White LED Flashlight: illumination 5000lux @120mm, LED lifespan: 100,000 hours

* Telescopic Antenna

* Built In Speaker

* USB output:charging cell phone/pda/mp3

* Color: Red / Black / Yellow

* Dimension: 128*60*45 mm

* USB cable length: approx. 50cm

ADVANTAGE：

A: SOLAR CHARGING:

Solar panel dimensions: 63*26*3(mm),

Max output voltage/current: 5V/30mA

Charge time: approx. 10-12 hrs under average sunlight 86000LUX,

The power indicator illuminates when charging.

B: HAND CRANK POWER

The red charge indicator illuminates when the handcrank is turning.

Hand cranking speed: >130r/minute

Output voltage: 4.5V DC

Max output current: 800±50mA

C: LED Lighting

Press the switch once to turn the 3 LEDs on.

Press the switch again to turn the 3 LEDs off.

Working voltage: 3.2V--4.2V

Working current <=60mA

Max power consumption:0.21W

LED lifetime: 100000 hours

Lighting : >5 hours @ 3LED ( 300mAh battery full charged)

1 minute of hand winding ( >=130 rpm) supports: over 30 Minutes of Continuous Light (<=100lux)

D: Radio

Turn the volume dial clockwise to turn the radio on and control volume.

Select AM FM or WB radio band. For better reception, extend the radio antenna.

Turn tuner dial to select station. The green tune indicator light will come on when the station selected is fully engaged.

AM: 520 ~ 1710 KHz FM: 87~108MHz WB(NOAA)

Radio : >350minutes ( 300mAh battery full charged, VOL midterm)

1 minute of hand winding ( >=130 rpm) supports: over 20 Minutes of working

Speaker: 0.4W, 8Ω

Max power consumption:0.25W

Working current <=70mA

Working voltage: 2.9V--4.2V

E: Charging the mobile phone

Lift the rubber tab on the back of the unit and find the USB port.

Connect the USB cable from the USB DC 5V output port to mobile phone directly.

Turning the hand crank (>130r/minute), the red power indicator illuminates when charging.

Max charging current: 450±50mA

Output voltage: DC 5.3V

F: Overcharge & over discharge protection

Charge: connect the -micro USB port to the computer or the AC/DC adapter with the charging USB cable, the red LED indicator illuminate. when the green indicator illuminates,the battery is charged full.

Discharge: the protect circuit starts working when the voltage is bellow 2.7V.

the LED will be flashing if the lighting switch is on, the sound will be distortion if the radio is on power.

Package Included:

1 x Solar LED Flashlight Weather Radio

1 x USB Cable

1 x User Manual
