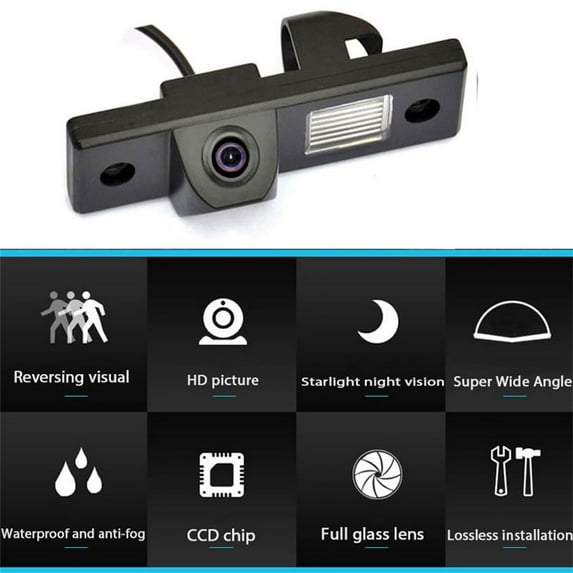

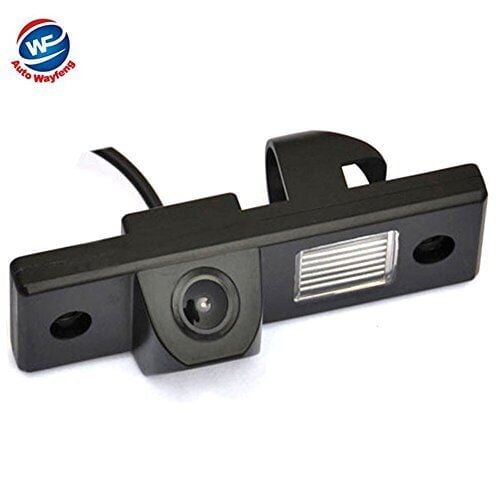

CCD Special Rear Camera For Chevrolet Epica/Lova/Aveo/Especially/Cruze/Lacetti

The special rear camera for Chevrolet epica/lova/aveo/ especially /cruze/lacetti


Designed for

FOR Chevrolet Epica

FOR Chevrolet LOVA

FOR Chevrolet Aveo

FOR Chevrolet, CAPTIVA

FOR Chevrolet Cruze

FOR Chevrolet Matisse

FOR Chevrolet HHR

FOR Chevrolet Lacetti


All cameras will be checked before being sent to you.

Specifications:

Image sensor: 1/4 "CCD color sensor

TV system: NTSC/PAL

Lens angle: large wide angle 170 ° display

Product lens: 6 wave lens, fish eye ultra wide angle full wave lens

Color brightness: automatic and positive

Effective pixels: 928 x 520

Resolution: 520 TV line

Video output: 1.0vp-p, 75

Electronic shutter: 1/60 (NTSC) -1/10000s, 1/50 (PAL) -1/10000s

Waterproof grade: IP68

Operating temperature: -20 ° c~+80 ° C RH95%

Working power (DCV): 1

Required current: max. 90 Ma



Installation:

1. Install cameras in the license area of the vehicle

2. Adjust the camera lens to the best position.

3. Connect the power cord (red and black) to the backup light of the vehicle power cord.

4. Connect the video output (yellow line) to the display.

Package：
1 * CCD car rear camera

1*6m video cable

1 * power cord

1 * user manual
