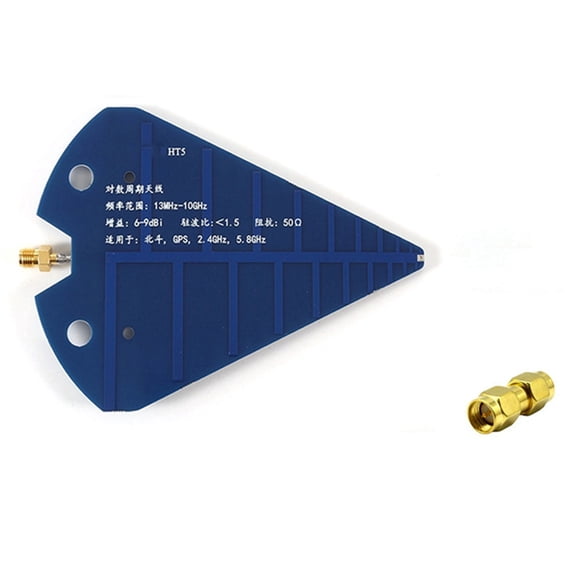

HT5 Log Periodic Antenna 1.3-10GHz High Gain 6-9dBi 50Ohm Wideband Test Antenna for VHF UHF SHF Beidou GPS

13MHZ-10GHZ ultra-wideband linear polarization directional antenna.
Logarithmic periodic antenna broadband test antenna can be used for Beidou, GPS, 2.4GHz, 5.8GHz, and other communications and for microwave darkroom testing.
This antenna is a broadband, high-gain logarithmic periodic antenna, which can also be used for direction finding, spectrum analysis, signal analysis, positioning, broadband measurement, direction finding, etc.
It can provide 6-9dBi directional gain in the frequency band of 13MHz-10GHz.
13MHz-10Ghz standing wave is less than 1.5, providing the continuous high field strength required for EMC testing, and is an ideal test antenna.

Antenna size:130x90x1.6mm
Antenna bandwidth:13MHz-10GHz
Impedance:50 ohms
Gain:6-9dBi
Maximum power handling:50W
VSWR:VSWR Less than 1.5
Colour:As Shown
Material:Plastic + Aluminum

Package Contents:
1 * Log Periodic Antenna Kit

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
