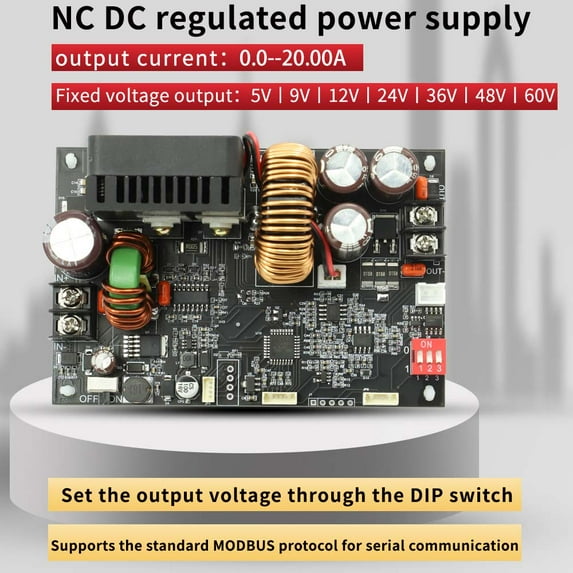

Regulated Supply,Stabilized Constant Constant And Constant And Constant And Constant 20a Lcd Display Constant 20a 1200w Adjustable Stabilized Buzhi Siuke Lcd

LCD Display Adjustable Direct Current Stabilized Voltage Power Supplys Constant Voltage and Constant Current 20A 1200W Step-down Module Multiple protections, voltage under voltage protecting, over voltage protecting, over current protecting, over protecting, over capacity protecting, timeout protecting, over temperature protecting, external temperature protecting. Support serial communication standard MODBUSprotocol. In operation interface, short press encoder button, (W), capacity (Ah), energy (Wh), time (h) will be displayed in turn in downstream; short press SW button, switch into input and output voltage display; long press encoder button for 2 seconds to lock set voltage and current to prevents misoperation. 10 groups of storage function, there are 10 groups of data from CD0 to CD9 (CD8=12 V; =24 V is not adjustable), data is saved to CD0 by default. Direct current voltage regulator, which is constant voltage and current design, with output voltage of 0.0-60.00V, output current of 0.0-20.00A, and output of 1200W. Full-view special supplys LCD large screen display, complete data display, simple operation, can provide stable working performance. Multi-parameter value setting, support setting input voltage undervoltage protecting value, overvoltage protecting value, overcurrent protecting value, overpower protecting value, maximum capacity, maximum energy, running time, -on status, and running interface rotary encoder, default setting parameters ( or ).

Item size:
-6020L size: 79 * 43 * 27mm / 3.11 * 1.69 * 1.06in
-6020L base plate: 72 * 109 * 42mm / 2.83 * 4.29 * 1.65in
Item weight:
-6020L size: 180g / 6.35ounce
-6020L base plate: 230g / 8.11ounce
Package size: 150 * 130 * 80mm / 5.91 * 5.12 * 3.15in
Package weight:
-6020L size: 190g / 6.70ounce
-6020L base plate: 240g / 8.47ounce

Specifications:
Name: Direct Current Voltage Stabilizer
Type: -6020L, -6020L base plate (optional)
Material: plastics+rinted circuit board
Cooling fan on: current>2A, >50W, temperature>50
Output current: 0-20.00A
Current setting: 0.01A
Input voltage: 6.0-70V
Output voltage setting: ±0.4% + 1 word
Input voltage measurement resolution: 0.01V
Output voltage: 0.0-60V
Maximum output voltage: (input voltage ÷ 1.1)-2
Output : 0-1200W
Output current setting and measurement accuracy and measurement accuracy: ±0.5% + 3 words
Output voltage setting measurement resolution: 0.01V
Output ripple typical value: 100mv VPP
Input voltage measurement resolution measurement accuracy: ±1% + 5 words
Cooling fan on and then off: current <1.5A; <45W, temperature <45


Packing List (-6020L):
1 * Direct Current Voltage Stabilizer
1 * Base Plate
2 * Cable

Packing List (-6020L Base Plate):
1 * -6020L Base Plate

OR

conservation Mechanism:
External temperature protections: 0-110 default off
Input overvoltage protections: 71V default
Input under-voltage protections: 4.8-71V adjustable, default 4.8V
Output over-voltage protections: 65V, default 65V
Output overcurrent protections: 0-22A, default 22A
Output over protections: 1250W, default 1250W
Over temperature protections: 60-110, default 95
Timeout protections: 0-100H adjustable, default off
Over capacity protections: 0-9999AH adjustable, default off
Super energy protections: 0-9999WH adjustable, default off

Two types optional, you can choose -6020L and -6020L base plate depending on your demands.
-6020L:Includes a voltage regulator, a base plate and 2 cables. direct current voltage regulator is constant voltage and current design, with output voltage of 0.0-60.00V, output current of 0.0-20.00A, and output of 1200W. Full-view special supplys LCD large screen display, complete data display, simple operation, can provide stable working
