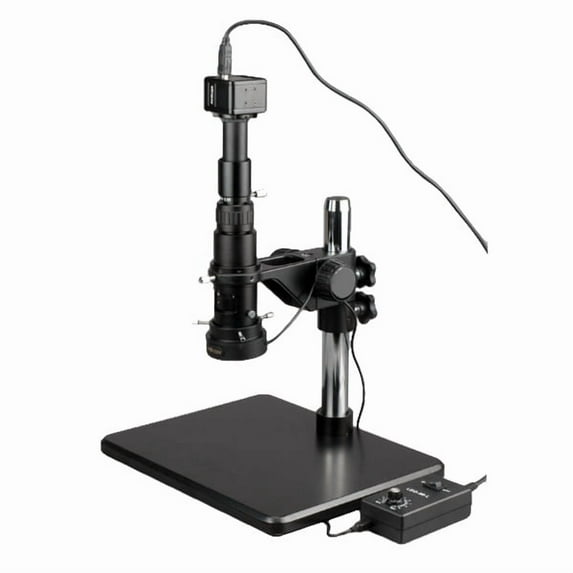

AmScope 11X-80X Industrial Single Zoom Inspection Microscope + 5MP USB Digital Camera New

(No ratings yet)

Key item features

Optical Magnification: Features an 11X-80X single zoom optical system for sharp, clear images and a super wide field of view.
Integrated Illumination: Includes a powerful 96-LED intensity-adjustable ring light for optimal specimen illumination.
Digital Imaging: Equipped with a 5MP USB2.0 digital camera for capturing still images and video, offering live PC streaming.
Software Compatibility: Multi-platform imaging solution with software for Windows, Mac, and Linux, including advanced Windows features like image-stitching.
Robust Construction: Built with a large metal stand and framework, ensuring stability during operation.
Camera Specifications: The 5.1MP CMOS sensor (Aptina MT9P001) provides various frame rates, including 5fps at 2592x1944 resolution.

Generated by AI

Specs

Maximum magnification
80 x
Brand
AmScope
Screen size
11"
Maximum image resolution
2592 x 1944
Megapixels
5 MP
Inputs/Outputs
USB 2.0

Current price is Now $719.99

You save $367.00

was $1,086.99

Price when purchased online

Out of stock

How do you want your item?

Out of stock

Report an issue with this seller

About this item

Product details

This is an 11X-80X single zoom inspection microscope with 96-LED intensity-adjustable ring light and 5MP USB2.0 digital camera. The microscope offers large working distance and provides sharp clear images with widefield of view. The digital camera captures still images and video, and allows you to view a live stream on your PC. With software available for Windows, Mac, and Linux, it's a multi-platform imaging solution. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. Independent preview and capture resolutions allow you to view high-speed video while capturing high-definition images. For Mac and Linux, there is a lite version with limited processing features.

Features:

11X-80X large zoom magnification power

Powerful 96-LED intensity-adjustable ring light

Long working distance

Super wide field view

Large Metal stand and framework

Manufactured Under ISO 9001 Quality Control Standard

Excellent Five (5) Year Factory Warranty

Specifications:

Zoom microscope objective: 0.7X-5.0X

Mount: 0.4X C-mount

Working distance: 4-1/8" (105mm)

Field of view: 1/2"x11/16" (12.9mm X 17.1mm) to 5/64"x3/32" (1.8mm X 2.4mm)

Illumination: 96-LED ring light

Power input: 110-240V, 50-60HZ, auto switching

Metal stand plate dimension: 13"x10"

Pillar: 11" (280mm) long

Accessory: Dust cover

Camera Specifications:

Sensor: Aptina MT9P001

Sensor Type: CMOS

Sensor Size: 5.7x4.28mm

px Size: 2.2

Resolution: 5.1MP

Frame Rate: 5@2592x1944, 18@1280x960, 60@640x480

Sensitivity: 0.53 V/lux-sec

Compatibility: Windows (32/64 bit) XP/Vista/7/8/10, Mac OSX, Linux

Software Specifications:

OS Requirements: Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+

Hardware Requirements: Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB2.0 port

Packing List:

One Monocular Zoom Microscope Head with 0.7-5.0X Objective and 0.4X C-Mount Lens

One Focusing Rack

One Pillar Plate Stand

One Dust Cover

One 96-LED Ring Light with Control Box

One 5MP Color Digital Camera with Reduction Lens

Two Mounting Adapters (30mm and 30.5mm)

One USB Cable

One CD with Driver, Software and User's Instructions

One Package: 18 lbs

Super widefield single zoom optical system offers sharp clear images
11X-80X large zoom magnification power and range
Powerful 96-LED ring light with dimmer
