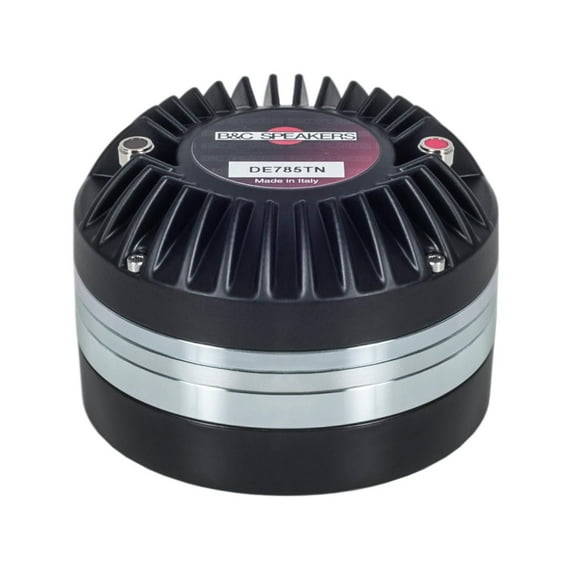

B&C Speakers DRV785TN8 HF Driver Titanium Diaphragm 110 Watts Rms 220 Watts Peak 8 Ohms Loudspeaker Motorcycle Car Pro Audio Components Speaker - DRV785TN-8

Hero image 0 of B&C Speakers DRV785TN8 HF Driver Titanium Diaphragm 110 Watts Rms 220 Watts Peak 8 Ohms Loudspeaker Motorcycle Car Pro Audio Components Speaker - DRV785TN-8, 0 of 6

B&C Speakers

B&C Speakers DRV785TN8 HF Driver Titanium Diaphragm 110 Watts Rms 220 Watts Peak 8 Ohms Loudspeaker Motorcycle Car Pro Audio Components Speaker - DRV785TN-8

(No ratings yet)

Key item features

GENERAL Brand : B&C Speakers Model Number : DRV785TN8 DRV785TN-8 UPC : 8050593406613 718852125023 FEATURES Continuous Power Handling: 220 W Voice Coil Diameter: 75 mm 3.0 in aluminum Frequency Response: 500 - 18,000 Hz Sensitivity: 107.5 dB Diaphragm Material: Titanium Magnet Material: Neodymium with shorting copper cap "
"SPECIFICATIONS Throat Diameter : 50 mm 2 in Minimum Impedance : 8.3 Continuous Power Handling : 220 W Frequency Range : 0.5 - 18 kHz Voice Coil Diameter : 75 mm 3 in Inductance : 0.17 mH Magnet Material : Neodymium Ring Nominal Impedance : 8 Nominal Power Handling : 110 W Sensitivity : 107.5 dB Recommended Crossover : 1 kHz Winding Material : Aluminium Diaphragm Material : Titanium Flux Density : 1.95 T "
"MOUNTING INFO Overall Diameter: 112 mm 4.41 in Depth: 77 mm 3.03 in Net Weight: 1.75 kg 3.86 lb Shipping Box : 135x135x93 mm 5.31x5.31x3.66 in "
The B&C DRV785TN-8 is a high-frequency driver designed for professional audio applications, particularly suitable for compact line array loudspeakers. This driver is notable for its 220W continuous power handling capability and an impressive frequency response range of 500 - 18,000 Hz. The 75 mm 3 in aluminum voice coil and titanium diaphragm are central to its high-performance characteristics, offering exceptional sound clarity and efficiency.
A key aspect of the DRV785TN-8 is its sensitivity, rated at 107.5 dB, which ensures clear and loud sound output. The driver's design incorporates a 2" horn throat diameter, optimized for effective sound projection. Additionally, the neodymium magnet assembly with a shorting copper cap contributes to its superior sound quality and efficiency.

Specs

Rms power rating
110 W
Peak audio power handling
220 W
Loudspeaker sensitivity
107.5 dB
Freq range
500 - 18,000 Hz
Impedance
8 ohm
Brand
B&C Speakers

Current price is $320.00

Price when purchased online

Out of stock

How do you want your item?

Out of stock

Report an issue with this seller

About this item

Product details

B&C Speakers DRV785TN8 HF Driver Titanium Diaphragm 110 Watts Rms 220 Watts Peak 8 Ohms Loudspeaker Motorcycle Car Pro Audio Components Speaker - DRV785TN-8

GENERAL Brand : B&C Speakers Model Number : DRV785TN8 DRV785TN-8 UPC : 8050593406613 718852125023 FEATURES Continuous Power Handling: 220 W Voice Coil Diameter: 75 mm 3.0 in aluminum Frequency Response: 500 - 18,000 Hz Sensitivity: 107.5 dB Diaphragm Material: Titanium Magnet Material: Neodymium with shorting copper cap "
"SPECIFICATIONS Throat Diameter : 50 mm 2 in Minimum Impedance : 8.3 Continuous Power Handling : 220 W Frequency Range : 0.5 - 18 kHz Voice Coil Diameter : 75 mm 3 in Inductance : 0.17 mH Magnet Material : Neodymium Ring Nominal Impedance : 8 Nominal Power Handling : 110 W Sensitivity : 107.5 dB Recommended Crossover : 1 kHz Winding Material : Aluminium Diaphragm Material : Titanium Flux Density : 1.95 T "
"MOUNTING INFO Overall Diameter: 112 mm 4.41 in Depth: 77 mm 3.03 in Net Weight: 1.75 kg 3.86 lb Shipping Box : 135x135x93 mm 5.31x5.31x3.66 in "
The B&C DRV785TN-8 is a high-frequency driver designed for professional audio applications, particularly suitable for compact line array loudspeakers. This driver is notable for its 220W continuous power handling capability and an impressive frequency response range of 500 - 18,000 Hz. The 75 mm 3 in aluminum voice coil and titanium diaphragm are central to its high-performance characteristics, offering exceptional sound clarity and efficiency.
A key aspect of the DRV785TN-8 is its sensitivity, rated at 107.5 dB, which ensures clear and loud sound output. The driver's design incorporates a 2" horn throat diameter, optimized for effective sound projection. Additionally, the neodymium magnet assembly with a shorting copper cap contributes to its superior sound quality and efficiency.

info:

We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here, and we have not verified it.

Specifications

Rms power rating

110 W

Peak audio power handling

220 W

Loudspeaker sensitivity

107.5 dB

Freq range

500 - 18,000 Hz
