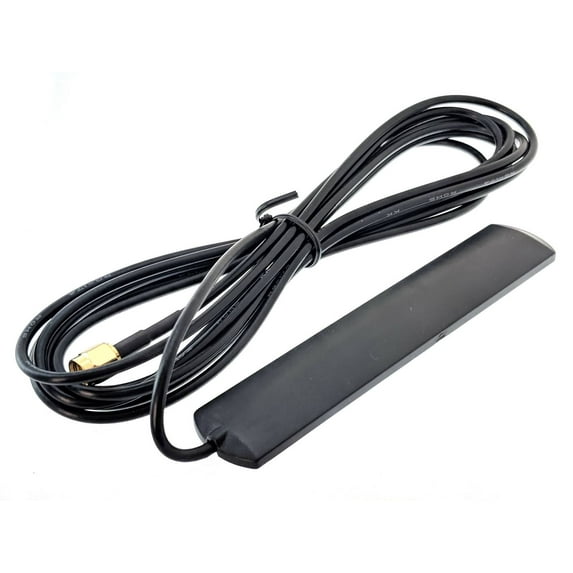

BY-2400-04 : WiFi / BT / BLE / ZigBee / ISM 2400MHz Omni-Directional SMA Male Adhesive Mount Antenna

BY-2400-04 is  external 2,4GHz antenna, To be used in wide range of WiFi / BT / BLE /  ZigBee / ISM 2400MHz IOT applications.

BY-2400-04 comes with 3m length cable and SMA Male type connector. 3M Industrial Adhesive at the back of antenna makes it convenient to stick it at some suitable place.

Specification:
- Frequency?MHz??2400-2500
- VSWR: ?1.5
- Gain?dBi?? 3.5
- Max Input power?W?? 50
- Input Impedance???? 50
- Polarization? Vertical
- Size?mm?? 115 x 22 x 4
- Cable Length?m/ft?? 3/9.8
- Cable Type? RG174
- Connector? SMA
- Mounting? Adhesive

DataSheet:  https://github.com/iotbotscom/docs/blob/main/AddOns/Antennas/BY-2400-04/BY-2400-04.doc
